Power Steering Gear Box: Installation

  1. Push in the power steering gear box assembly (A) on the right side of the vehicle.

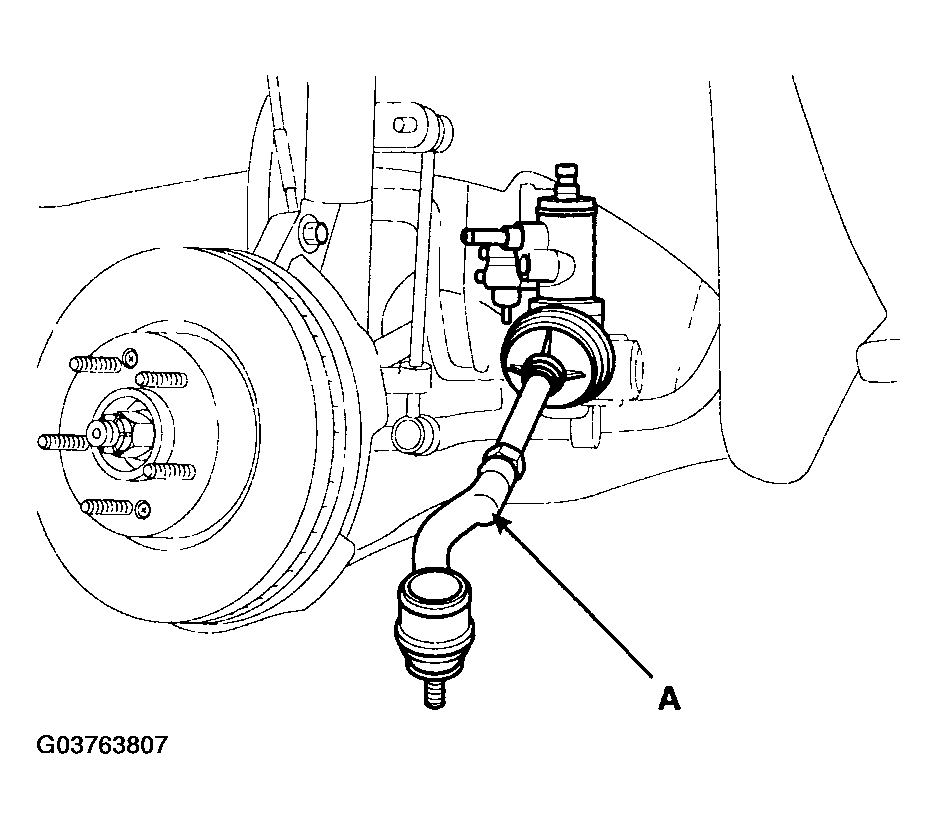

    Fig 1: Pushing In Power Steering Gear Box Assembly
    G03763807Courtesy of HYUNDAI MOTOR CO.
  2. Install the dust cover mounting plate.
  3. Connect the dust cover to its mounting plate with a new strap.
  4. Connect the steering gear box assembly to the universal joint assembly (A) by using the bolt (B).

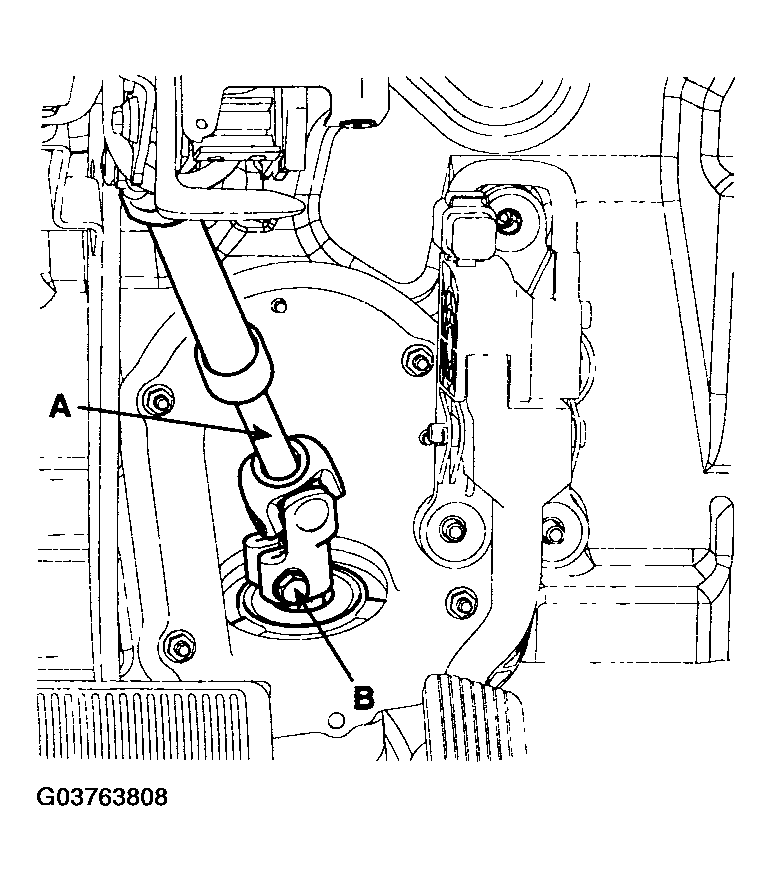

    Fig 2: Connecting Steering Gear Box Assembly And Universal Joint Assembly
    G03763808Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
  6. After installation, air bleed the system. (see AIR BLEEDING )
