Inspection Of Electrodes

INSPECTION OF ELECTRODES

CONDITION	DARK DEPOSITS	WHITE DEPOSITS
DESCRIPTION	Fuel mixture too rich Low air intake	Fuel mixture too lean Advanced ignition timing Insufficient plug tightening

Check the electrode gap (A).
Standard (New)

1.0-1.1 mm (0.039-0.043 in.) - Unleaded

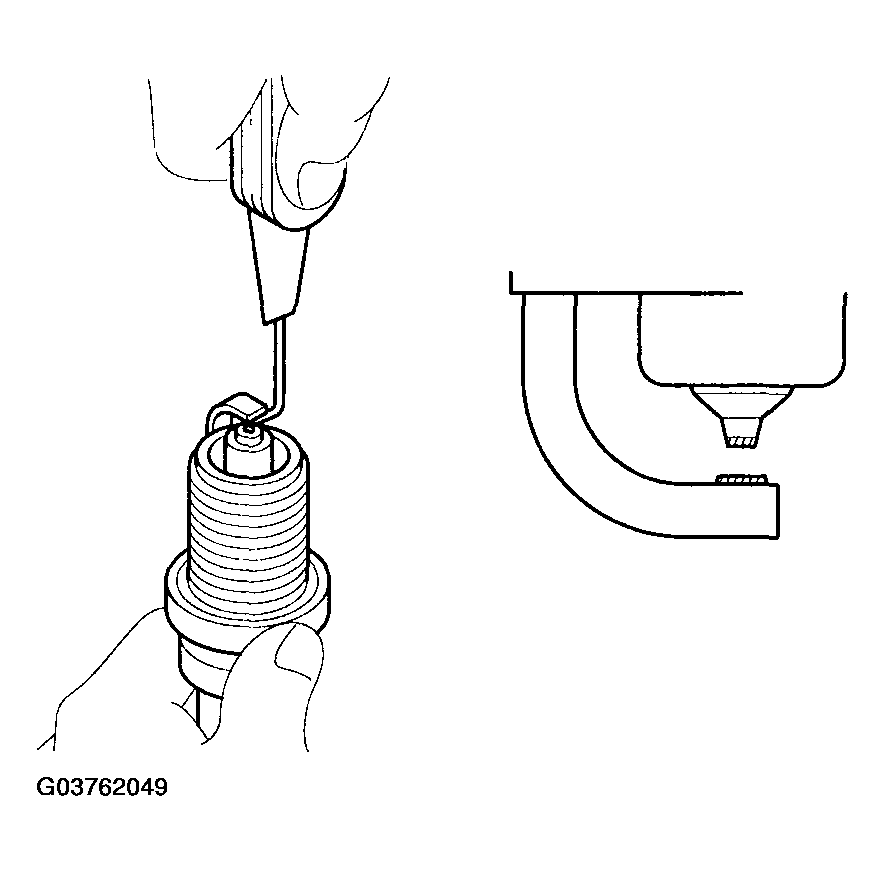

Fig 1: Checking Electrode Gap
Courtesy of HYUNDAI MOTOR CO.
Carefully remove the spark plug cable by pulling on the rubber boots (A).
Check the condition of the spark plug cable terminals (B), if any terminal is corroded, clean it, and if it broken or distorted, replace the spark plug cable.

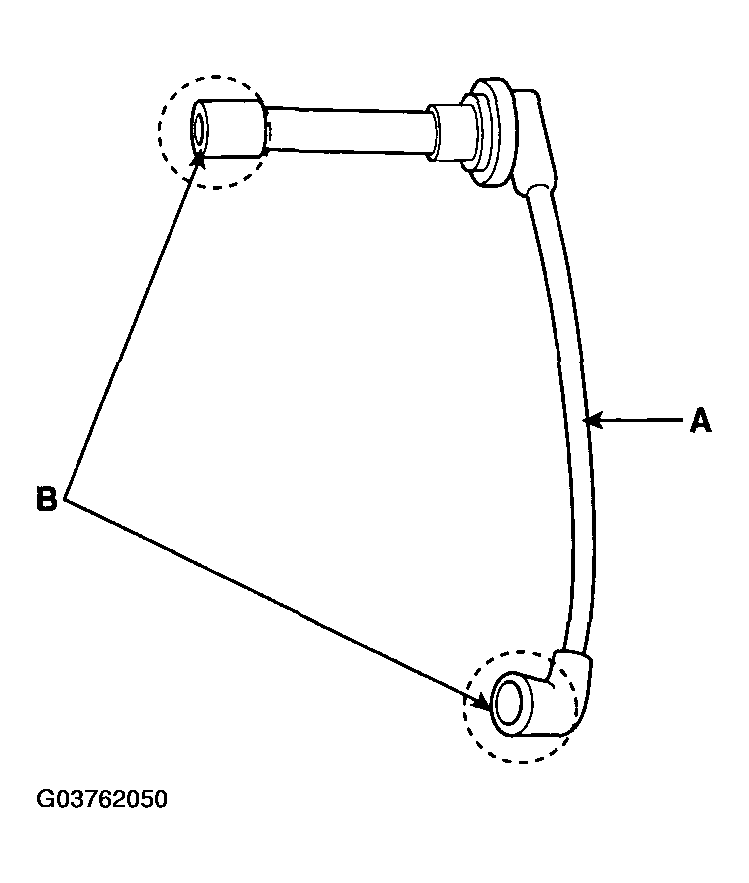

Fig 2: Identifying Spark Plug Cable & Rubber Boots
Courtesy of HYUNDAI MOTOR CO.
Connect the ohmmeter probes and measure resistance.
RESISTANCE: 5.6KΩ/m +/- 20%

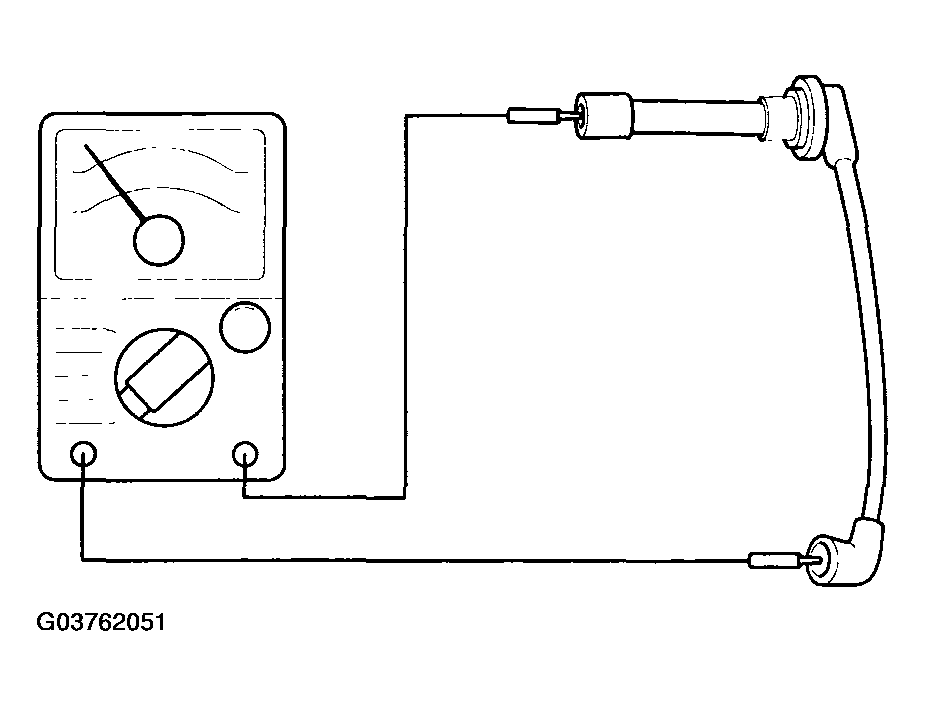

Fig 3: Connecting Ohmmeter Probes To Spark Plug Cable Terminals
Courtesy of HYUNDAI MOTOR CO.
Resistance should not be higher than 10KΩ per meter of cable.
If resistance is higher, replace the cable.
