Inspect Rotor

  1. Check that there is continuity between the slip rings (A).

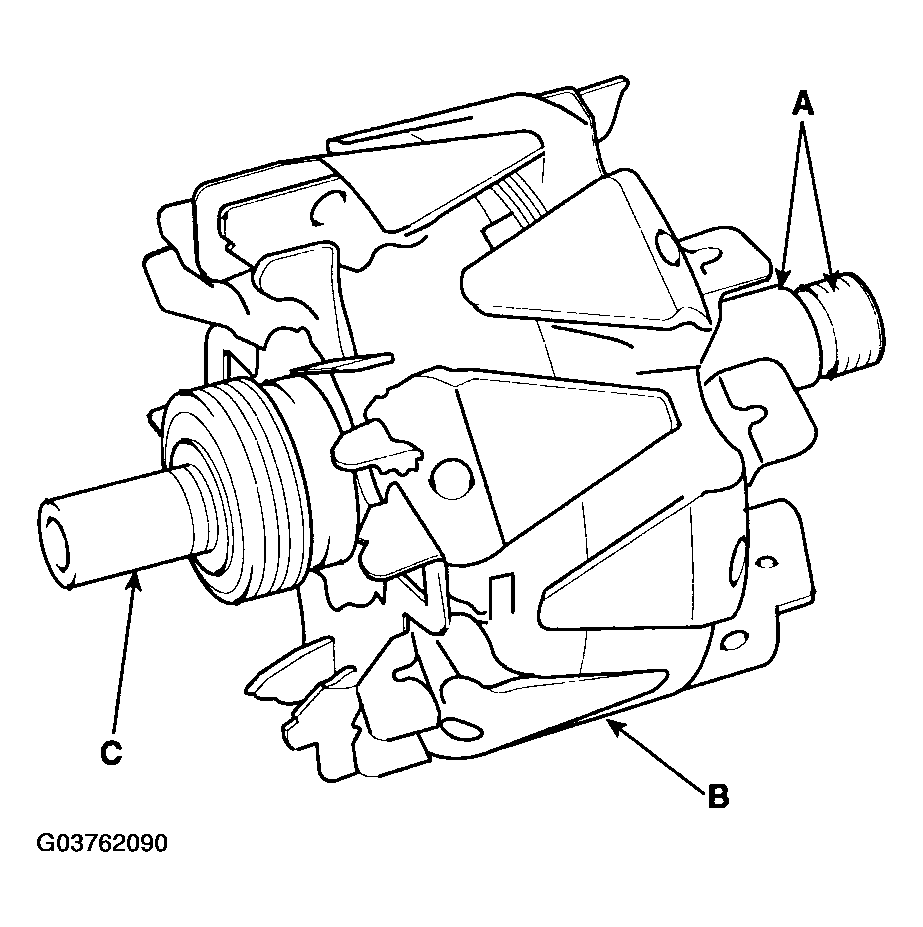

    Fig 1: Identifying Slip Rings, Rotor & Rotor Shaft
    G03762090Courtesy of HYUNDAI MOTOR CO.
  2. Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (C).
  3. If the rotor fails either continuity check, replace the alternator.
