Output Characteristic

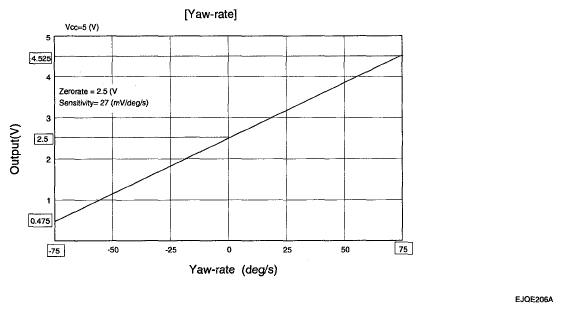

Fig 1: Yaw-Rate Sensor Output Voltage Graph
G05344532Courtesy of HYUNDAI MOTOR CO.
Fig 2: Yaw-Rate Sensor Output Voltage Graph
G05344533Courtesy of HYUNDAI MOTOR CO.
