ESC OFF Switch: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crushpad of the driver's side.

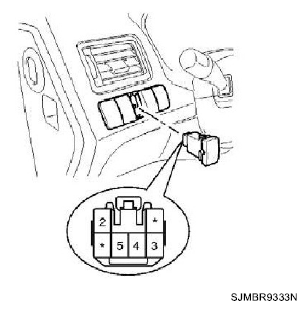

    Fig 1: Identifying ESC OFF Switch Connector Terminal
    G06207546Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.

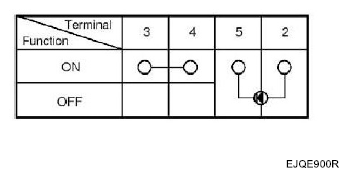

    Fig 2: ESC OFF Switch Continuity Chart
    G06207547Courtesy of HYUNDAI MOTOR CO.
