ESC Circuit Diagram

Circuit Diagram (1)

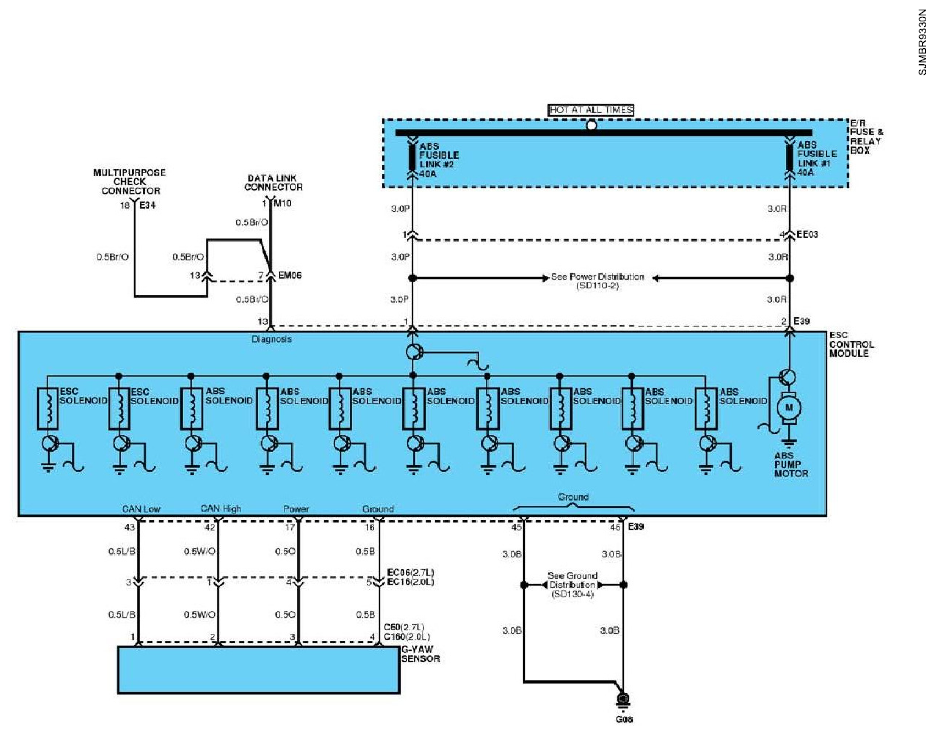

Fig 1: ESC Circuit Diagram (1)

Courtesy of HYUNDAI MOTOR CO.

Circuit Diagram (2)

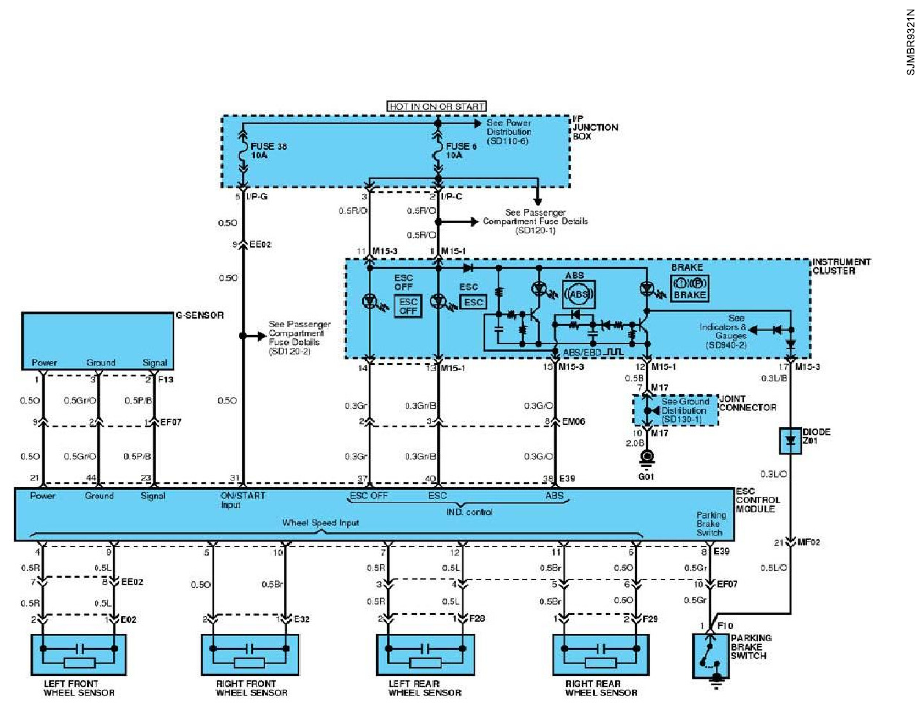

Fig 2: ESC Circuit Diagram (2)

Courtesy of HYUNDAI MOTOR CO.

Circuit Diagram (3)

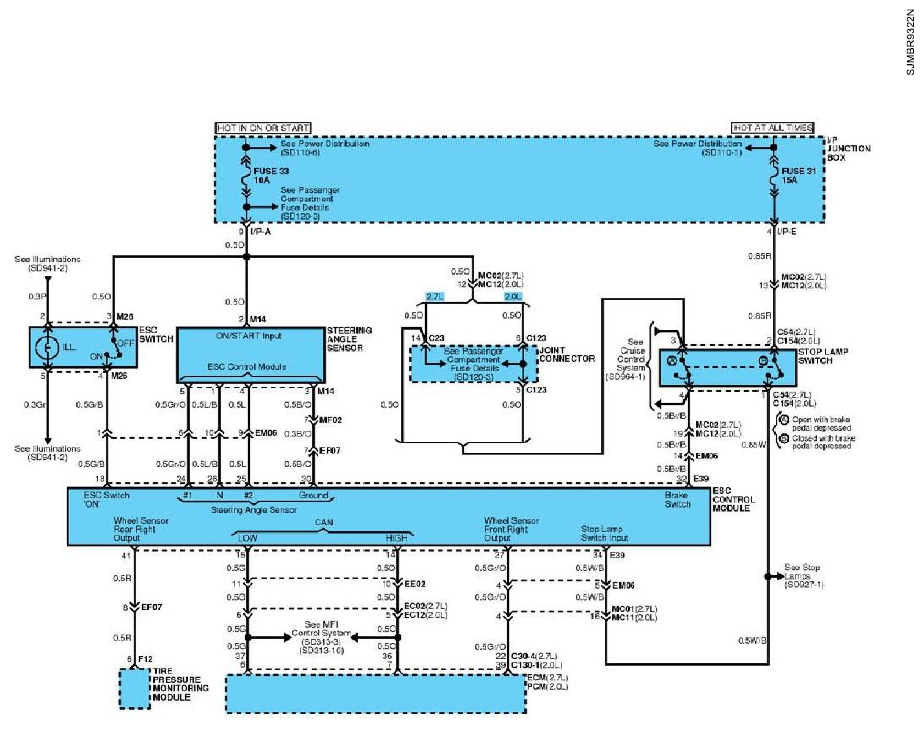

Fig 3: ESC Circuit Diagram (3)

Courtesy of HYUNDAI MOTOR CO.
