ETACS Module Input Signal Test

  1. Disconnect the wire connector from the ETACS module.
  2. Inspect the connector on wire harness side as shown in the below.

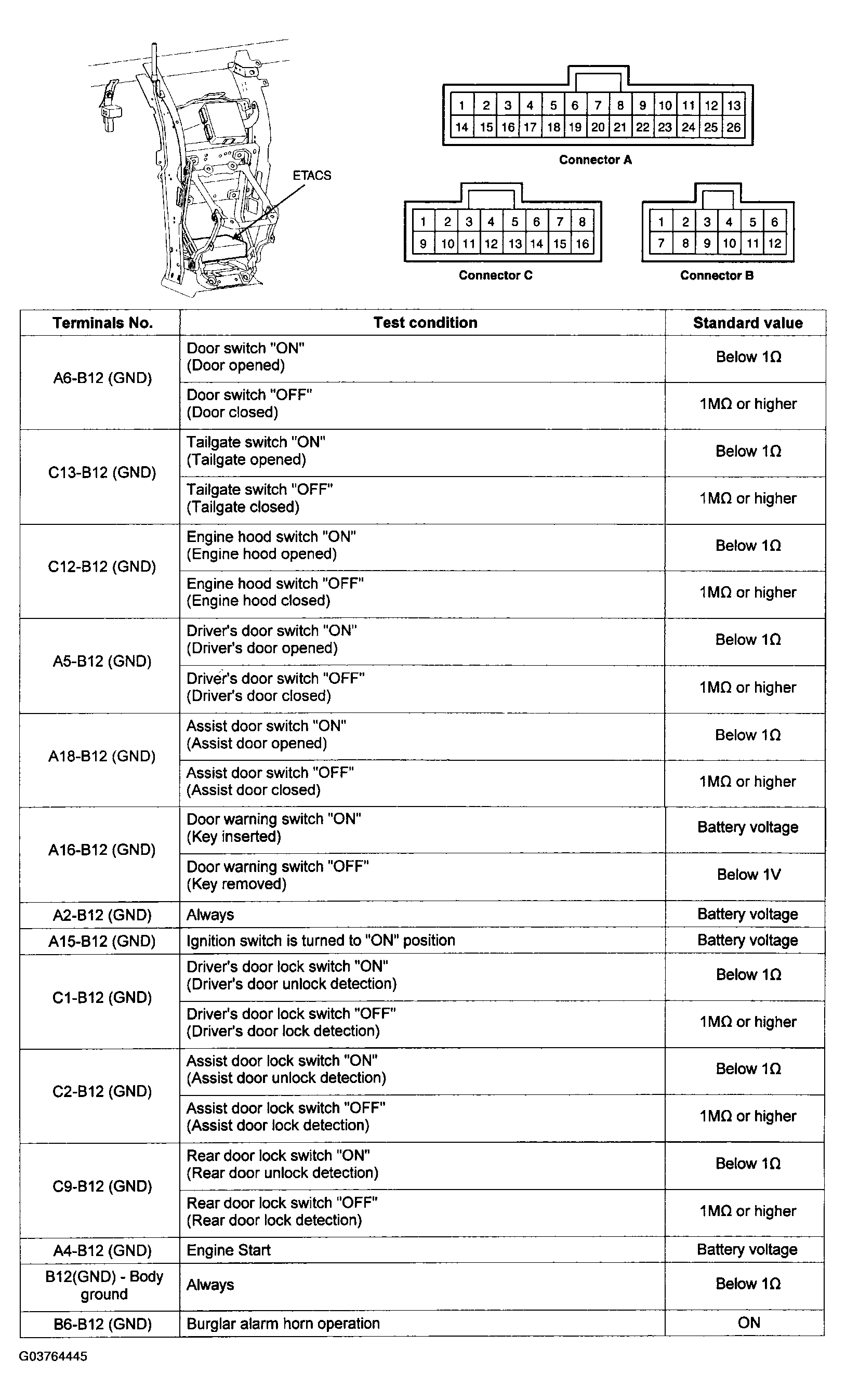

    Fig 1: ETACS Module Connector Resistance Values
    G03764445Courtesy of HYUNDAI MOTOR CO.
