Audio Unit: Components

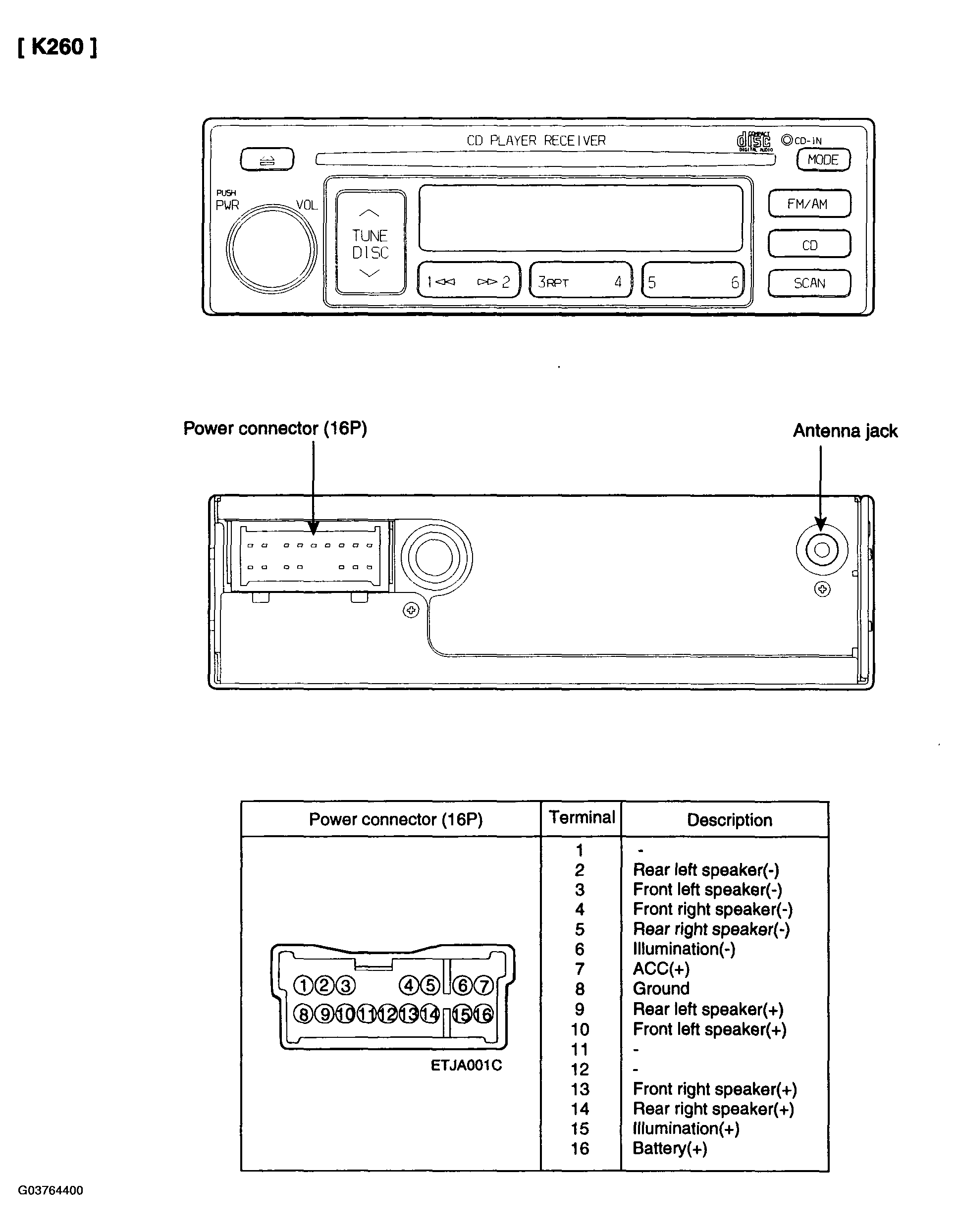

Fig 1: Identifying Audio Unit Components (K260)
G03764400Courtesy of HYUNDAI MOTOR CO.

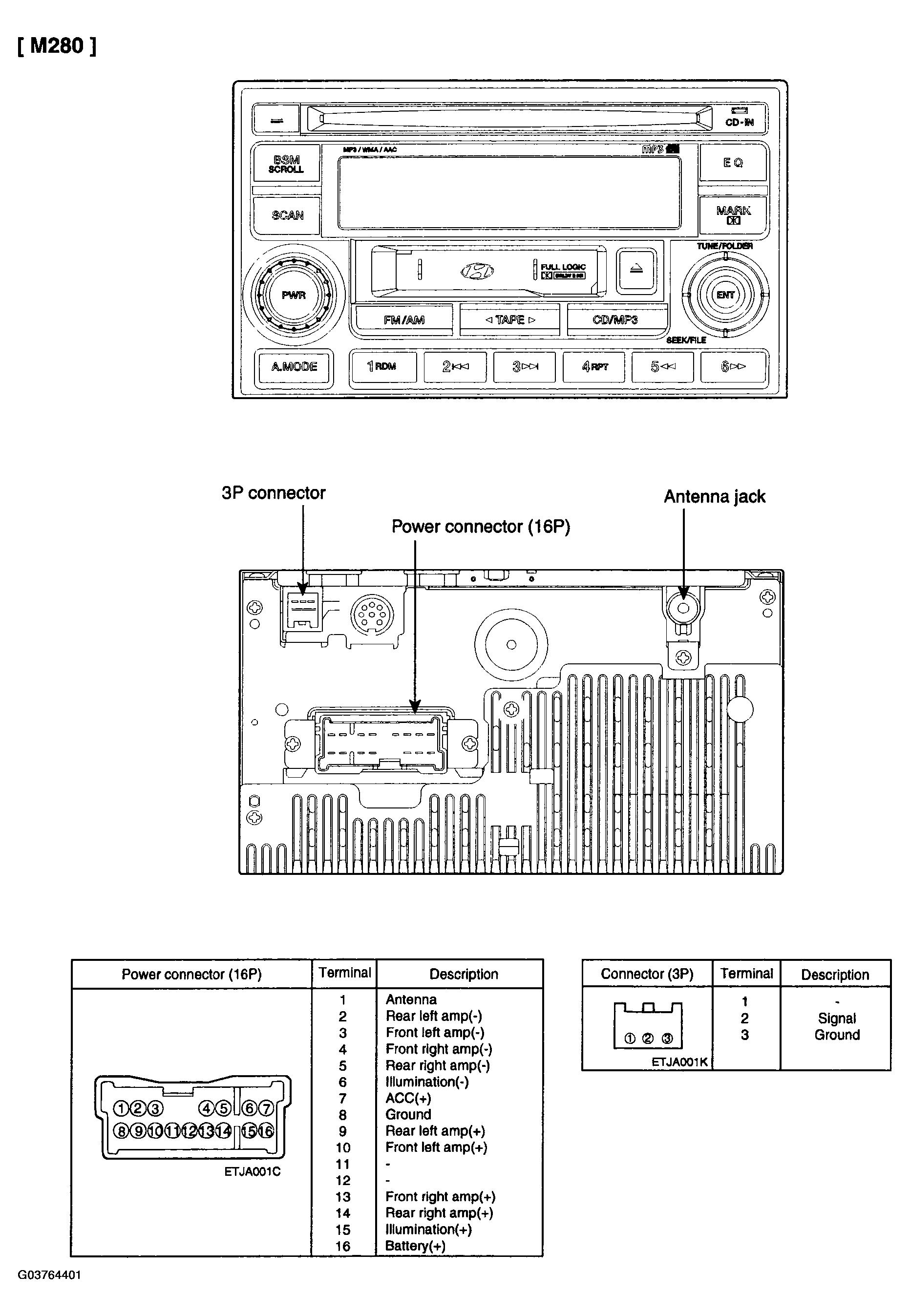

Fig 2: Identifying Audio Unit Components (M280)
G03764401Courtesy of HYUNDAI MOTOR CO.

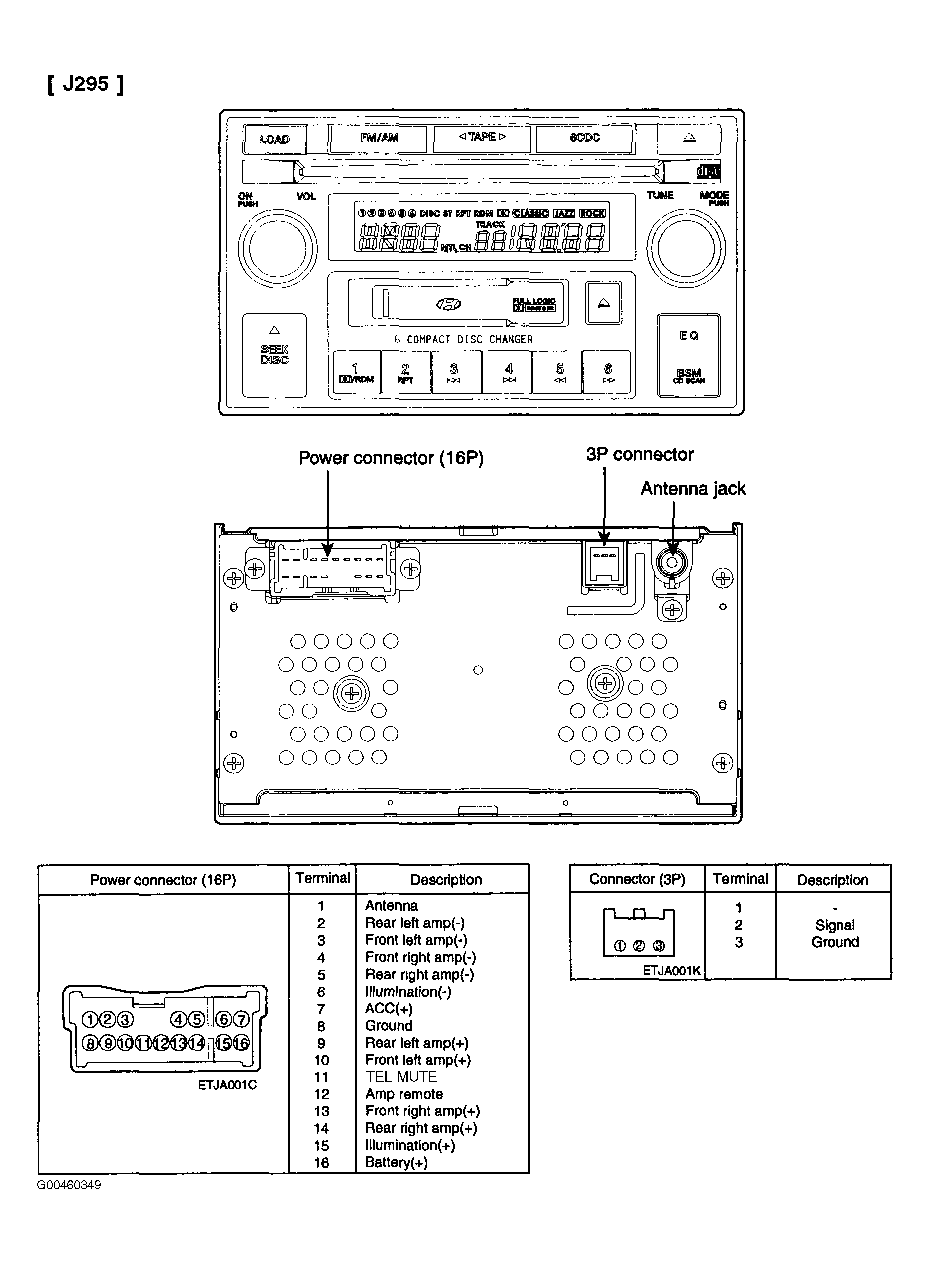

Fig 3: Identifying Audio Unit Components (J295)
G00460349Courtesy of HYUNDAI MOTOR CO.
