WCS Reset

Ignition "OFF", connect scantool.
Ignition "ON" & Engine "OFF", select Weight Classification System and select "WCS Reset" mode.
You will see comments and current weight measure
Make sure the measure weight is caused by occupant or tools or interference.
And then press "ENTER"

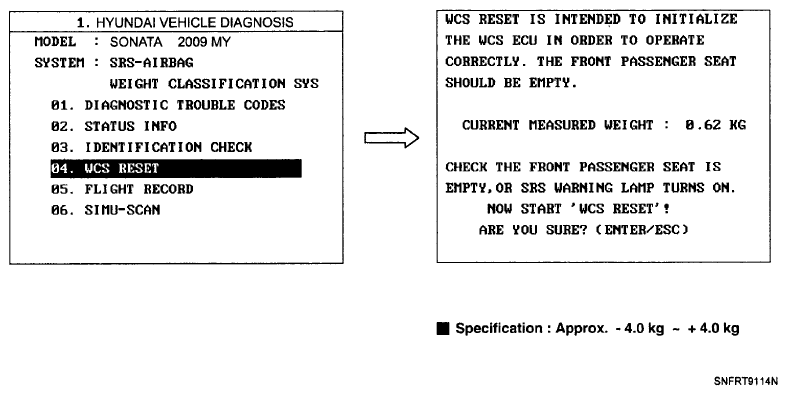

Fig 1: Scan Tool Display - WCS Reset Mode
Courtesy of HYUNDAI MOTOR CO.
The 'WCS Reset' operation will take 3~10 second.
Make sure that there should not be vibration or weight adding to the passenger front seat.

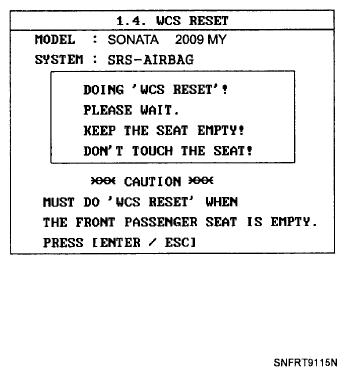

Fig 2: Scan Tool Display - Weight Classification System Reset
Courtesy of HYUNDAI MOTOR CO.
If the 'WCS Reset' operation is finished successfully, you will see the following screen.

Fig 3: Scan Tool Display - WCS Reset
Courtesy of HYUNDAI MOTOR CO.
Is the displayed parameter the same as the above 4 figure?
YES
- WCS reset is performed correctly.
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- WCS reset isn't performed correctly.
- Go to the applicable troubleshooting procedure.
