Seat Track Position Sensor (STPS): Replacement

  1. Remove the seat assembly mounting cover (A) .
  2. After loosening the seat assembly mounting bolt and nut, remove the seat assembly (B) .
    Fig 1: Identifying Seat Assembly Mounting Cover
    G04892510Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the STPS connector and remove the mounting bolts (A) .

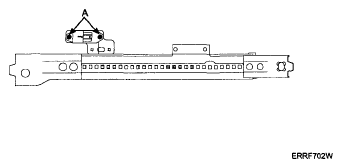

    Fig 2: Identifying STPS Connector And Mounting Bolts
    G04892515Courtesy of HYUNDAI MOTOR CO.
