SRS Control Module (Restraints): Removal

Disconnect the negative (-) cable from battery and wait for at least 3 minutes.

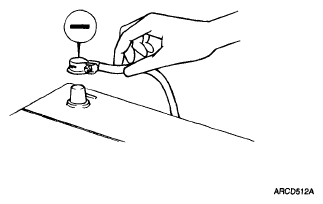

Fig 1: Disconnecting Negative (-) Cable From Battery
Courtesy of HYUNDAI MOTOR CO.
Remove ignition key from the vehicle.
Remove the center console. (Refer to INTERIOR (BODY (INTERIOR & EXTERIOR) ) ) .
Pull back the lever, then disconnect the SRSCM harness connector (A) . Loosen the bolt (B) , then remove the SRSCM (C) .

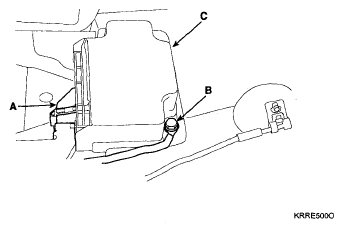

Fig 2: Identifying SRSCM Harness Connector And Bolt
Courtesy of HYUNDAI MOTOR CO.

SRSCM mounting bolt:

0.97~1.39 kgf.m (9.5 ~ 13.6 Nm,7.0 ~ 10.03 lb-ft)
Installation is the reverse of removal.
NOTE:
- Turn the ignition switch ON; the SRS indicator light should turn on for about six seconds and then go off.
- Always use new bolts when installing the SRSCM.
