Front Impact Sensor (FIS): Removal

CAUTION:

Removal of the airbag must be performed according to the precautions / procedures described previously.
Before disconnecting the front impact sensor connector, disconnect the front airbag connector (s) .
Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.

Disconnect the negative battery cable, and wait at least three minutes before beginning work.
Remove the nut (A) then remove the front impact sensor (B) .

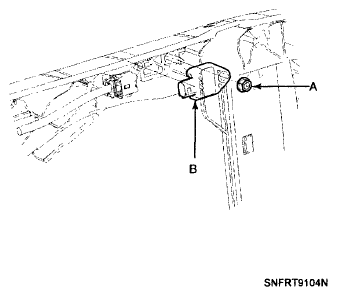

Fig 1: Identifying Front Impact Sensor And Nut
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE: After installing the front impact sensor, confirm proper system operation: Turn the ignition switch ON: the SRS indicator light should turn on for about six seconds and then go off.
