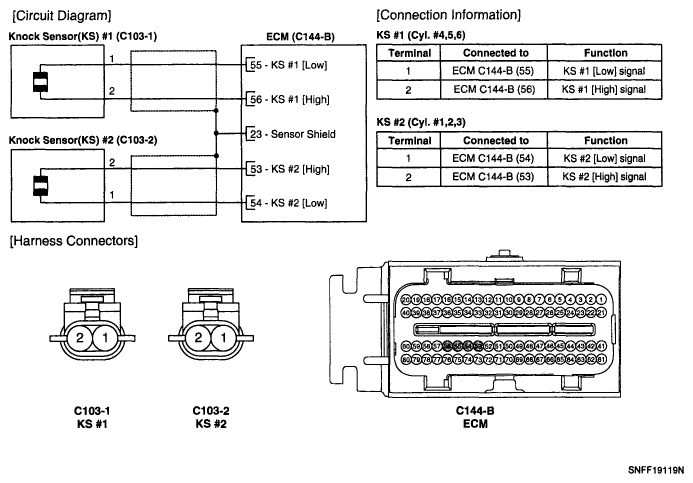

Home >> Hyundai >> 2009 >> Sonata GLS, 3.3 F >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System) - 3.3L >> Knock Sensor (KS) >> Circuit Diagram
