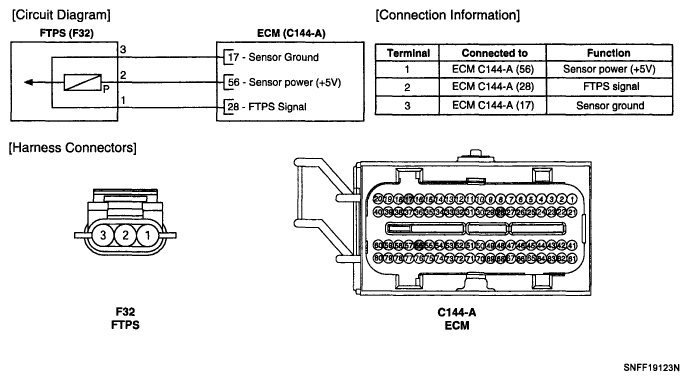

Home >> Hyundai >> 2009 >> Sonata GLS, 3.3 F >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System) - 3.3L >> Fuel Tank Pressure Sensor (FTPS) >> Circuit Diagram
