Component location

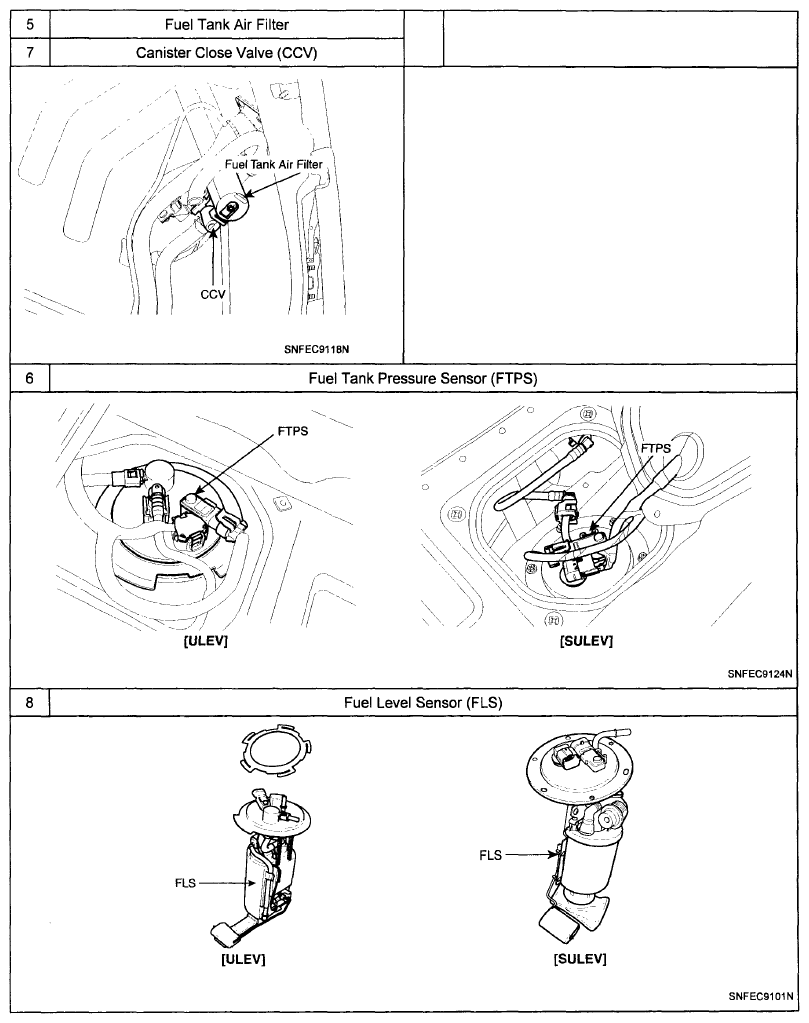

Fig 1: Identifying Emissions Control System Components

Courtesy of HYUNDAI MOTOR CO.

[2.4 DOHC]

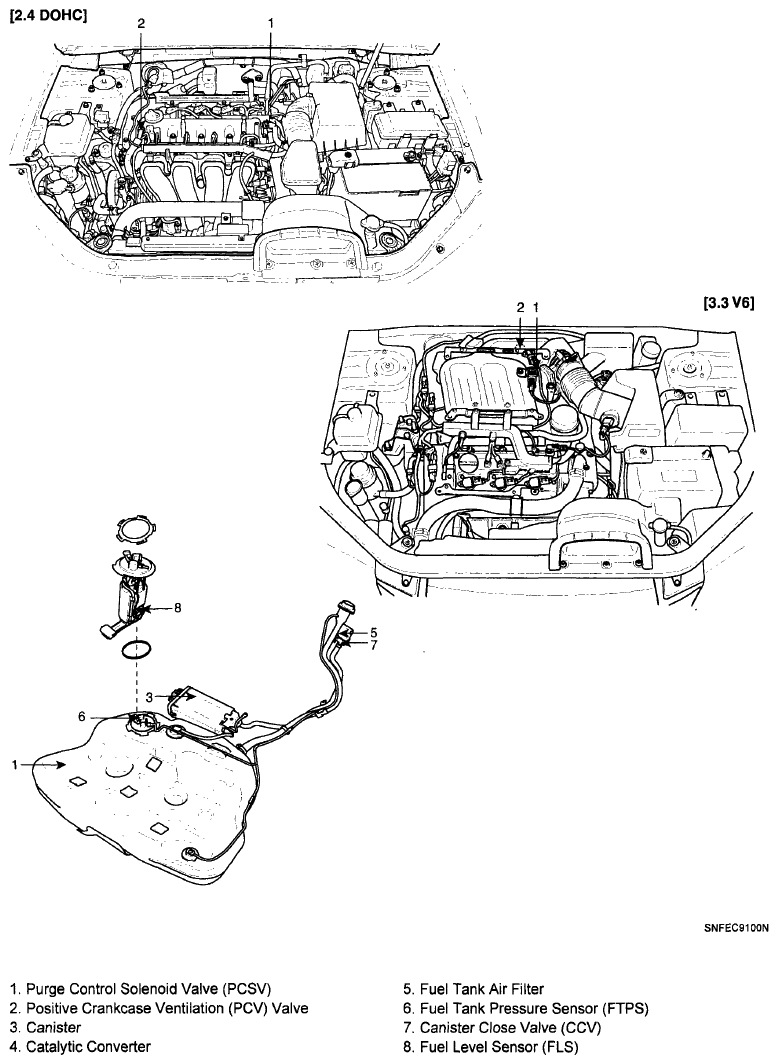

Fig 2: Identifying 2.4 DOHC Emissions Control System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

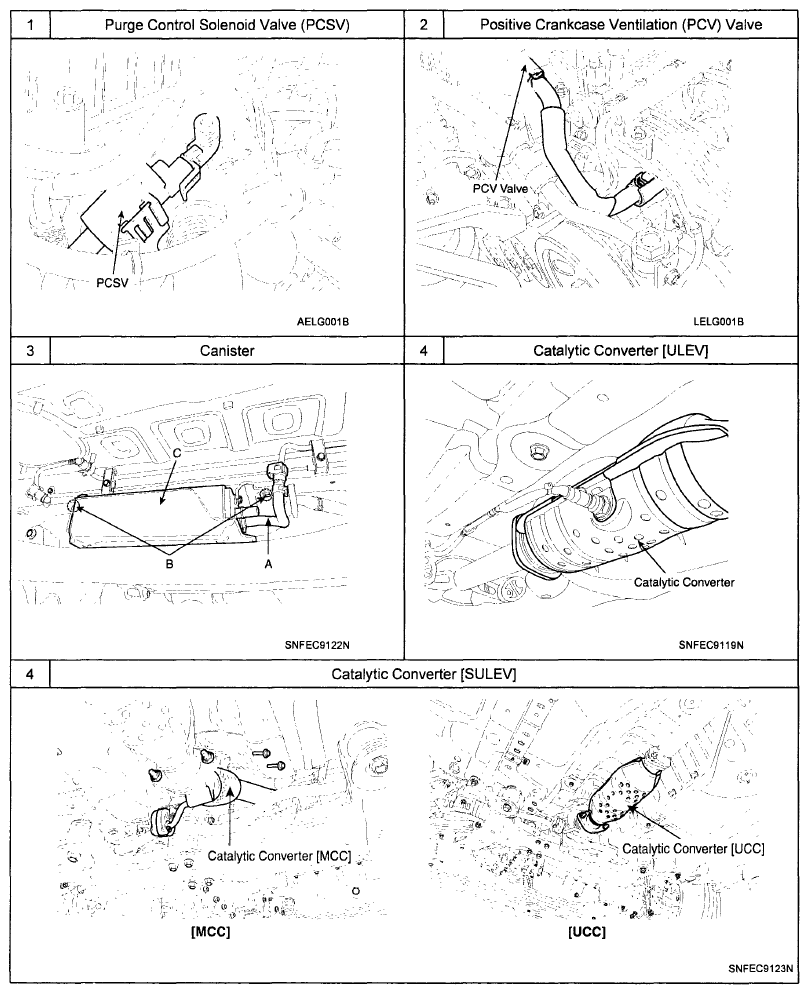

Fig 3: Identifying 2.4 DOHC Emissions Control System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

[3.3 V6]

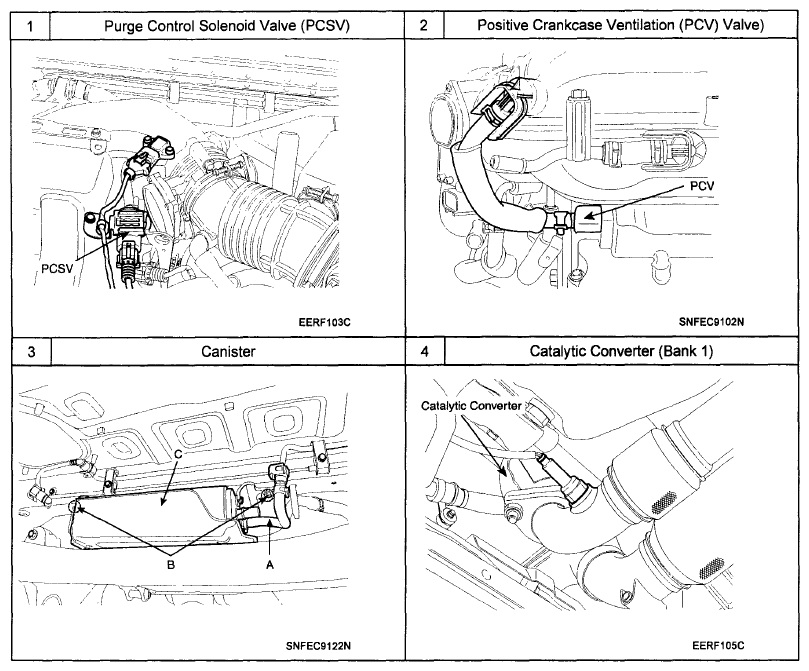

Fig 4: Identifying 3.3 V6 Emissions Control System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

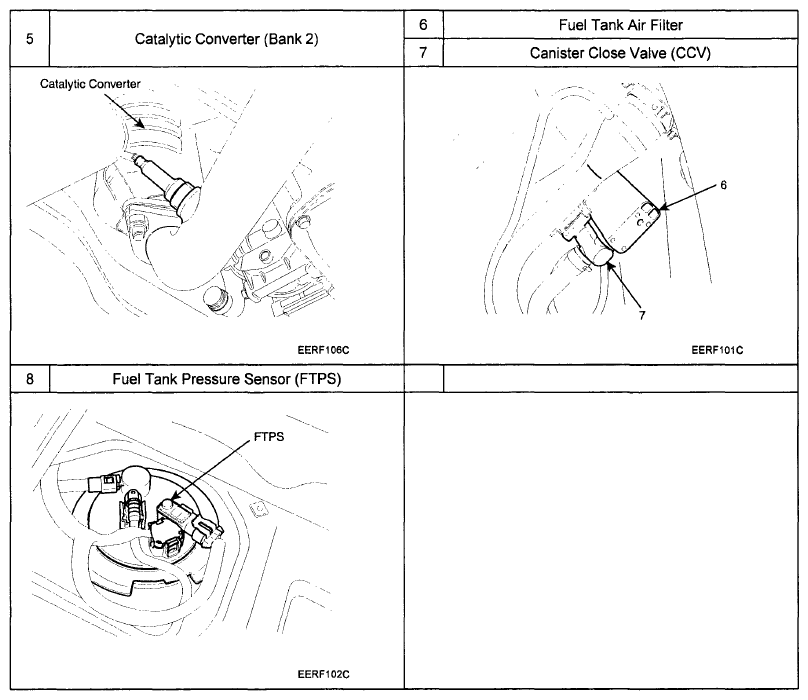

Fig 5: Identifying 3.3 V6 Emissions Control System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
