ESC Circuit Diagram: Notes

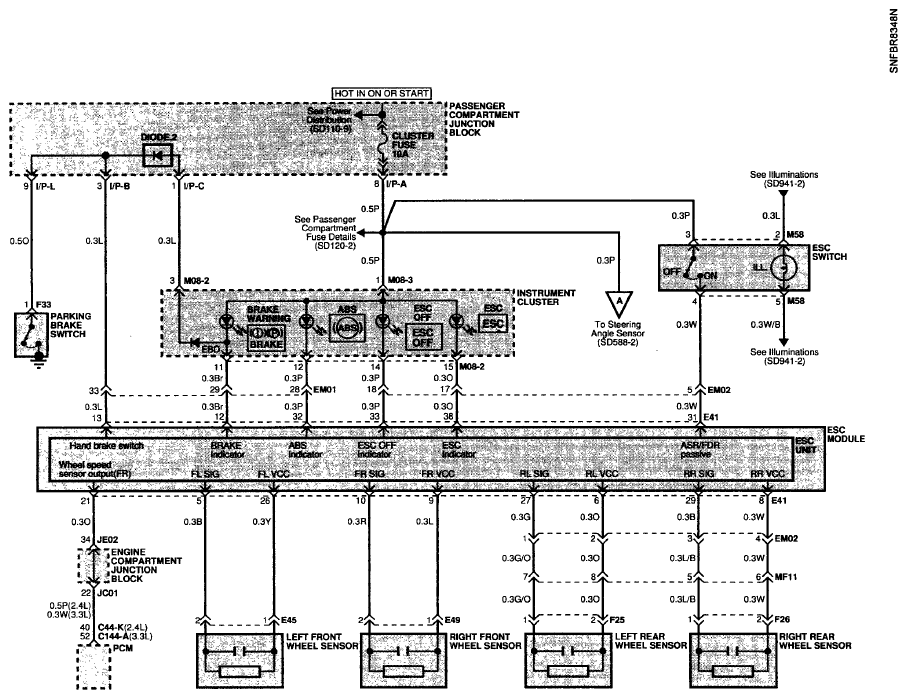

Fig 1: ESC Circuit Diagram (1 Of 3)
G06109206Courtesy of HYUNDAI MOTOR CO.

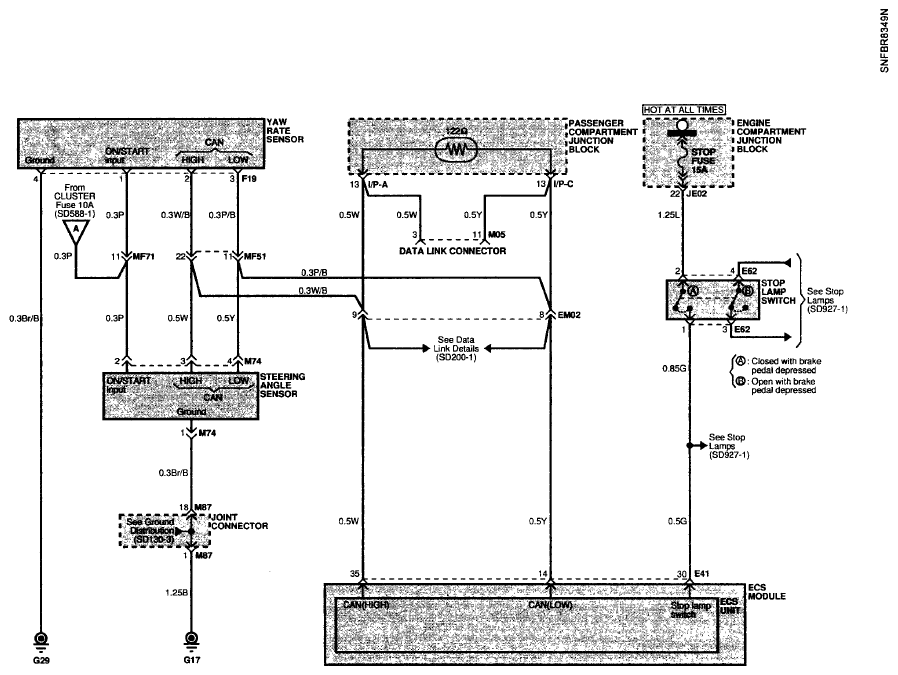

Fig 2: ESC Circuit Diagram (2 Of 3)
G06109207Courtesy of HYUNDAI MOTOR CO.

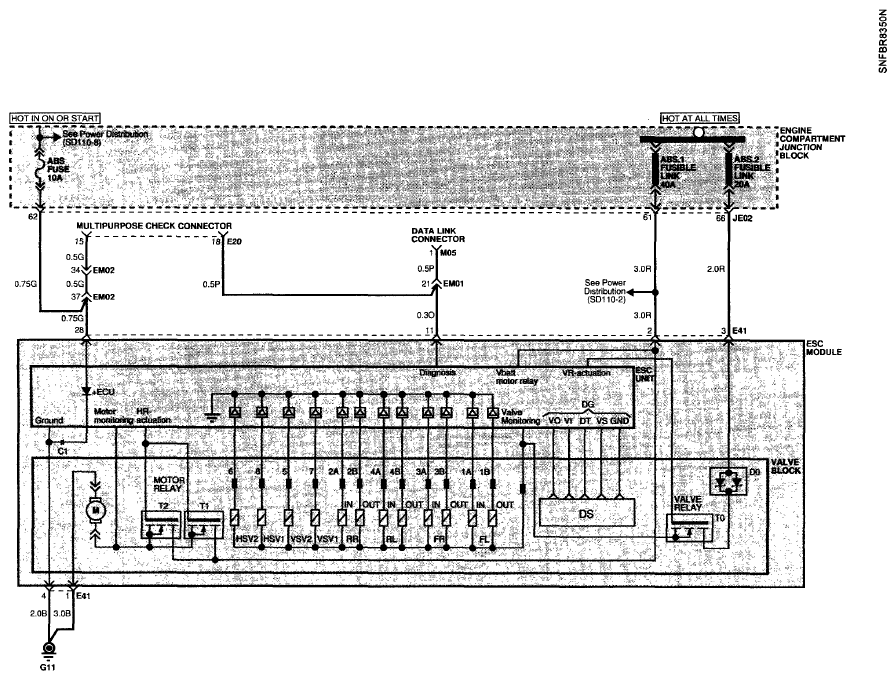

Fig 3: ESC Circuit Diagram (3 Of 3)
G06109208Courtesy of HYUNDAI MOTOR CO.
