ESC Operation Mode: Notes

STEP 1
The ESC analyzes the intention of the driver.

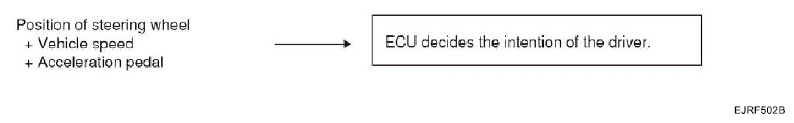

Fig 1: ESC Operation Mode Flow Diagram (STEP 1)
Courtesy of HYUNDAI MOTOR CO.
STEP 2
It analyzes the movement of the ESC vehicle.

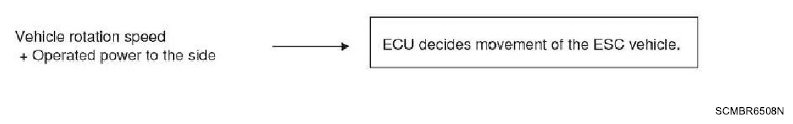

Fig 2: ESC Operation Mode Flow Diagram (STEP 2)
Courtesy of HYUNDAI MOTOR CO.
STEP 3
The HECU calculates the required strategy, then actuates the appropriate valves and sends torque control requests via CAN to maintain vehicle stability.

ESC Non-operation-Normal braking.

ESC NORMAL BRAKING CHART

	Inlet valve (EV)	Outlet valve (AV)	Pilot valve (USV)	High pressure switch valve (HSV)	Pump motor
Normal braking	Open	Close	Open	Close	OFF

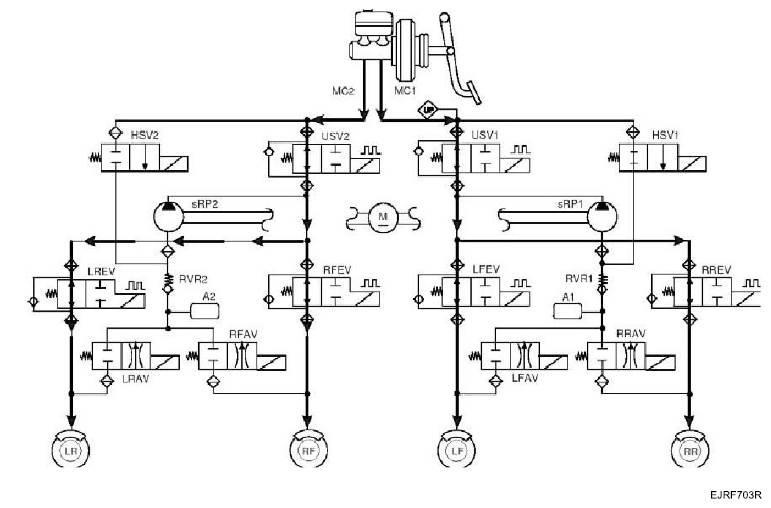

Fig 3: ESC Operation Mode Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

NOTE: EV: Inlet Valve
AV: Outlet Valve
LR : Rear left wheel
RF: Front right wheel
LF: Front left wheel
RR: Rear right wheel
PE: Pump motor
USV: Pilot Valve
HSV: High pressure Switch Valve

ESC INCREASE MODE

ESC NORMAL BRAKING CHART

	Inlet valve (EV)	Outlet valve (AV)	Pilot valve (USV)	High pressure switch valve (HSV)	Pump motor
Normal braking	Open	Close	Close (Partial)	Open	ON (Motor speed control)

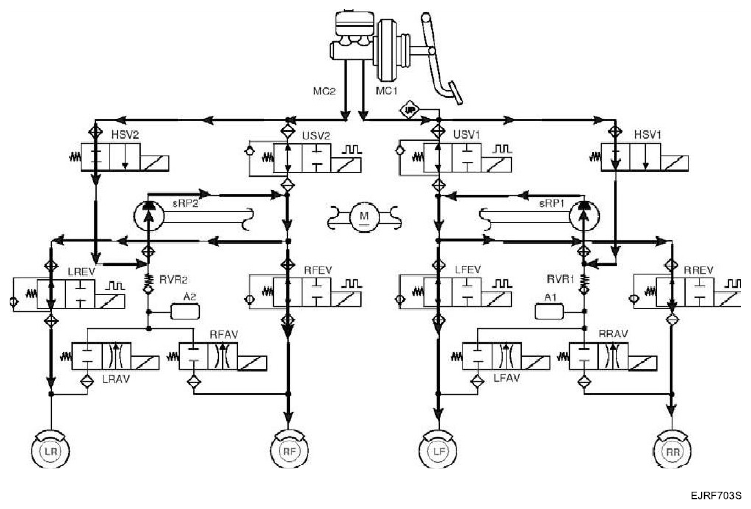

Fig 4: ESC Increase Mode Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

NOTE: EV: Inlet Valve
AV: Outlet Valve
LR : Rear left wheel
RF: Front right wheel
LF: Front left wheel
RR: Rear right wheel
PE: Pump motor
USV: Pilot Valve
HSV: High pressure Switch Valve

ESC HOLD MODE (FR is only controlled.)

ESC NORMAL BRAKING CHART

	Inlet valve (EV)	Outlet valve (AV)	Pilot valve (USV)	High pressure switch valve (HSV)	Pump motor
Normal braking	Close	Close	Close (Partial)	Open	ON (Motor speed low control)

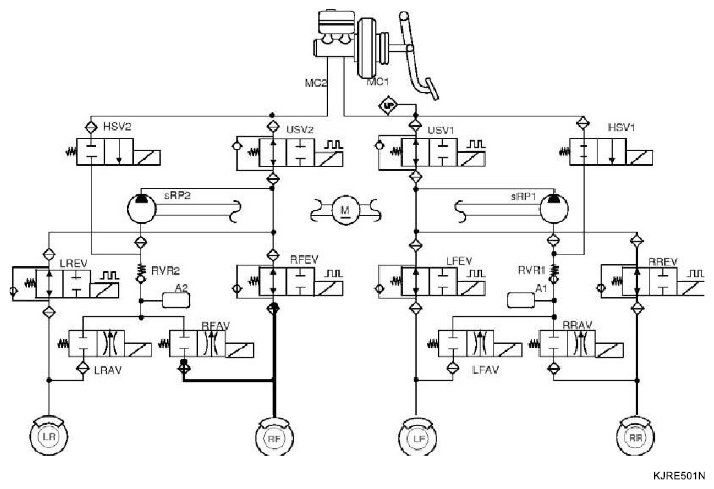

Fig 5: ESC Hold Mode Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

NOTE: EV: Inlet Valve
AV: Outlet Valve
LR : Rear left wheel
RF: Front right wheel
LF: Front left wheel
RR: Rear right wheel
PE: Pump motor
USV: Pilot Valve
HSV: High pressure Switch Valve

ESC DECREASE MODE (FR is only controlled)

ESC NORMAL BRAKING CHART

	Inlet valve (EV)	Outlet valve (AV)	Pilot valve (USV)	High pressure switch valve (HSV)	Pump motor
Normal braking	Close	Open	Close (Partial)	Open	ON (Motor speed low control)

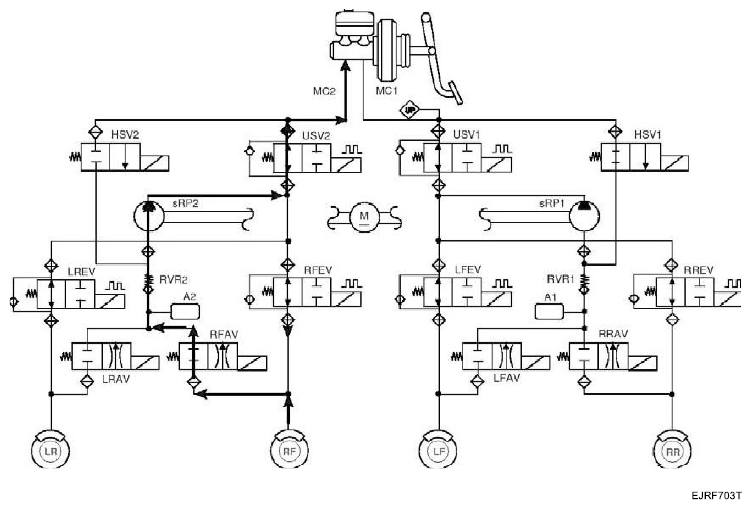

Fig 6: ESC Decrease Mode Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

NOTE: EV: Inlet Valve
AV: Outlet Valve
LR : Rear left wheel
RF: Front right wheel
LF: Front left wheel
RR: Rear right wheel
PE: Pump motor
USV: Pilot Valve
HSV: High pressure Switch Valve

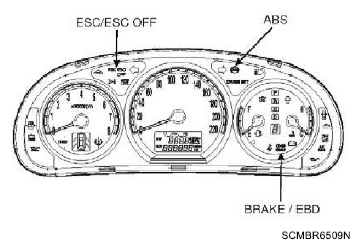

Fig 7: Identifying ABS Warning Lamp Module Part Location

Courtesy of HYUNDAI MOTOR CO.
