Monitor Scantool Data
- Connect scantool to Data Link Connector (DLC).
- Ignition "ON" & Engine "ON".
- Press the brake pedal.
- Monitor the "Pressure sensor" parameter on the Scantool.
Specification : Approx. 60bar ~150bar (There is difference in displayed parameter according to braking force)

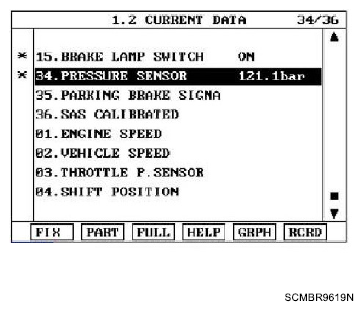

Fig 1) Test Condition: Ignition "ON" & Engine "ON".
Normal data (There is difference in displayed parameter according to braking force)
- Whenever brake pedal is pushed down, is the pressure sensor's scantool data changed?
YES
- Fault is caused by having been repaired and HECU memory was not cleared. Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
