Monitor Scantool Data

  1. Engine "ON".
  2. Connect scantool to Data Link Connector (DLC).
  3. Start and drive vehicle in gear and maintain vehicle speed is approx. 10km/h or more (6mph or more)

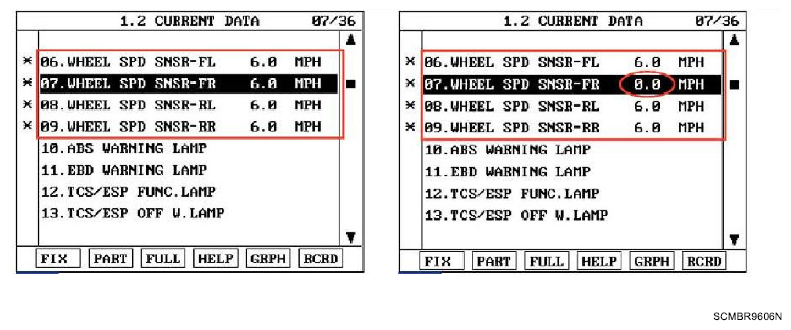

    Fig 1: Scan Tool Display - Wheel Speed Sensor (6.0 MPH)
    G06220278Courtesy of HYUNDAI MOTOR CO.

    Normal Data

  4. Monitor the "WHEEL SPD SENSOR-FR" parameter on the Scantool.

    Specification  : Compare with another parameters related to wheel speed sensor.

    If it is the same as another parameters, it is in normal condition.

    Fig 2) Test Condition : Drive vehicle at a speed of 10km/h or more. (6mph or more)

    Abnormal Data (Open)

  5. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor connection in wheel speed sensor harness (FR) and/or HECU's connector or was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
