Crankshaft Position Sensor (CKPS): Waveform

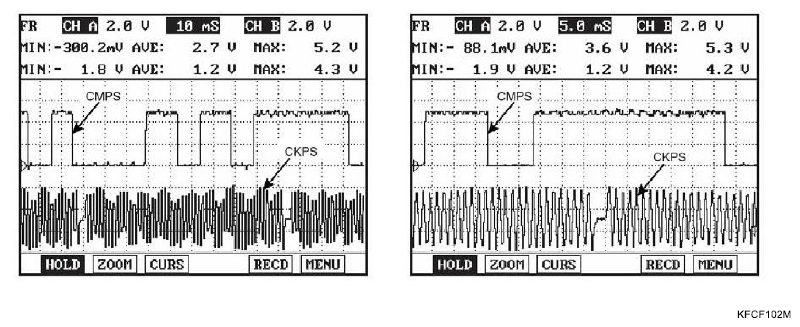

Fig 1: Crankshaft Position Sensor Waveform

G06217960

Courtesy of HYUNDAI MOTOR CO.
