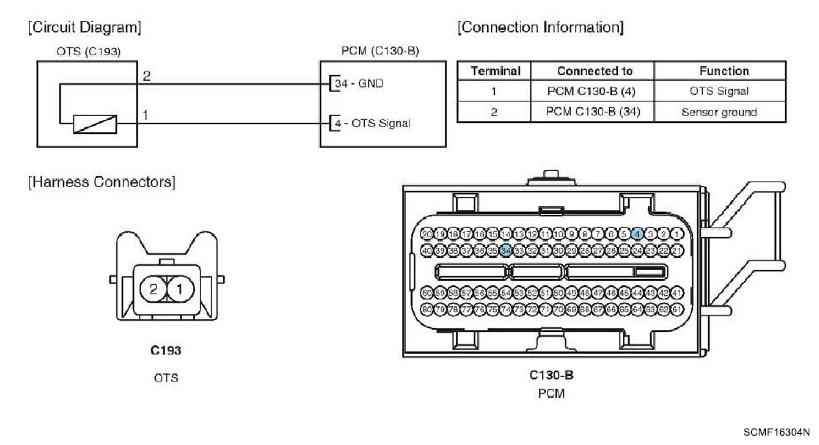

Home >> Hyundai >> 2009 >> Santa Fe SE, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (3.3L)) >> CVVT Oil Temperature Sensor (OTS) >> Circuit Diagram
