Ignition System: Components

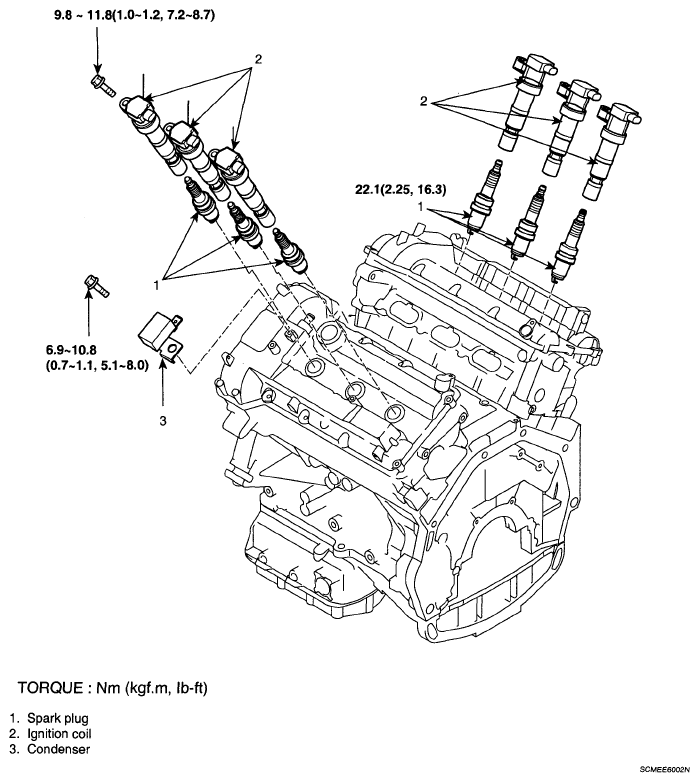

Fig 1: Engine Electrical System Parts With Torque Specification
Courtesy of HYUNDAI MOTOR CO.
