Automatic Transaxle System (F4A51-3)
>>
Automatic Transaxle System
>>
Troubleshooting
>>
Diagnosis Flow
Diagnosis Flow

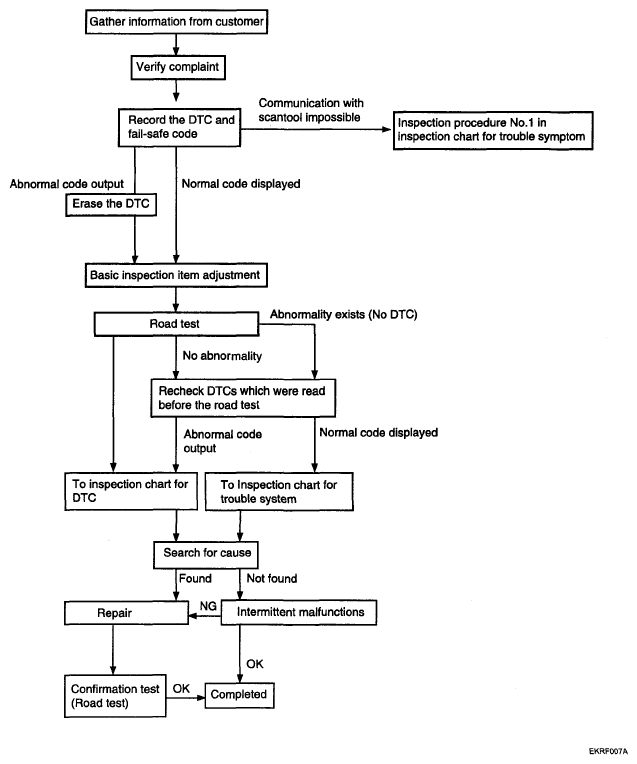

Fig 1: Troubleshooting Diagnosis Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
