Power Train: Reverse

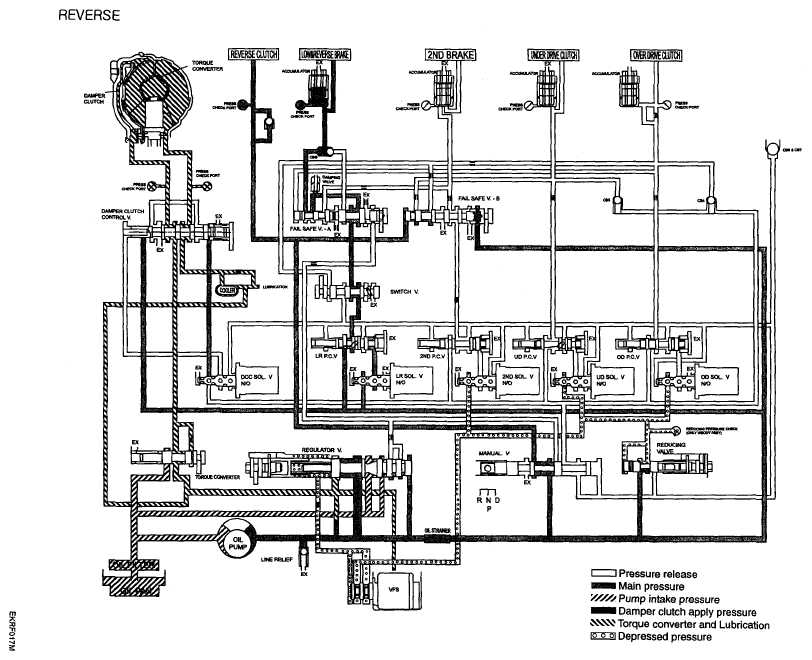

Fig 1: Oil Flow System Diagram - Reverse

G04891829

Courtesy of HYUNDAI MOTOR CO.
