Controller Area Network (Can)

Previously, for different computers in the vehicle to share the same information, each signal required a different pin and wiring. However, with the introduction of a CAN system, only two lines are required to achieve the same function. The information is in digital format. This method does not use an integrated ECM.

Frequency: 500Kbit/sec

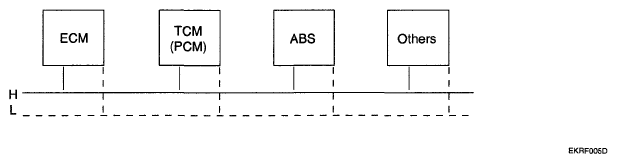

Fig 1: Controller Area Network Block Diagram (CAN)

Courtesy of HYUNDAI MOTOR CO.

Input signals to TCM (PCM) through 'CAN communication'

• Engine rpm, TPS signal
• A/CON signal, Engine coolant temperature
• Quantity of intake airflow, Vehicle speed
• Shift holding signal (FTCS ON)

Output signals from TCM (PCM) through 'CAN communication'

• Request signal for torque reduction
• ATF temperature, TCM (PCM) type, TCM (PCM) error or not
• Damper clutch ON, OFF / Gear position
