Electric Control Location

The TCM (PCM) is located on the intake manifold in the engine room.

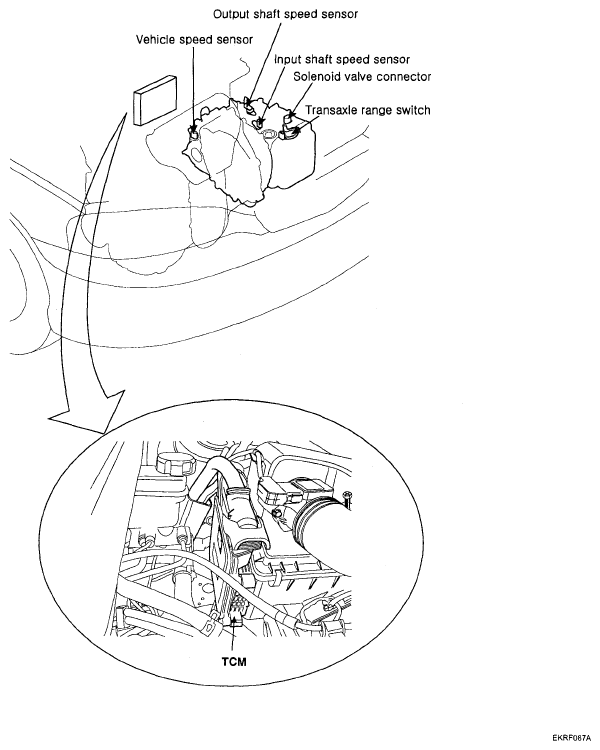

Fig 1: Locating TCM

G04891831

Courtesy of HYUNDAI MOTOR CO.
