Signal Circuit Inspection

Measure resistance between each terminal of the sensor harness connector and TCM (PCM) harness connector as below.

Specification :

RESISTANCE SPECIFICATION CHART

Pin No of "TRANSAXLE RANGE SWITCH"	C08 No. 1	C08 No. 3	C08 No. 4	C08 No. 7
Pin No of "PCM" harness	C30-A No. 6	C30-A No. 3	C30-A No. 5	C30-A No. 4
Specification	0Ω	0Ω	0Ω	0Ω

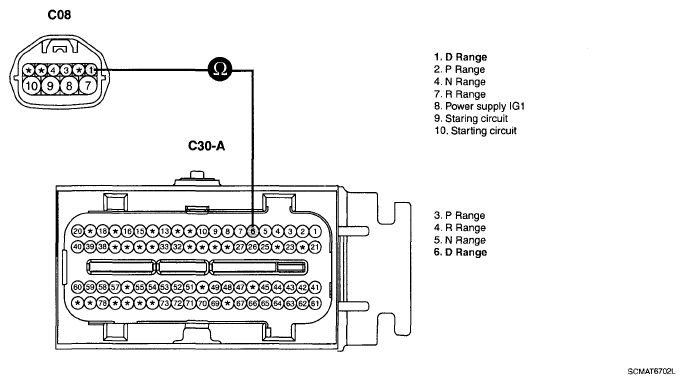

Fig 1: Measuring Resistance Between Terminal Of Sensor Harness Connector And TCM (PCM) Harness Connector

Courtesy of HYUNDAI MOTOR CO.

Is resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Check for Open in harness. Repair as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
