Components (1)

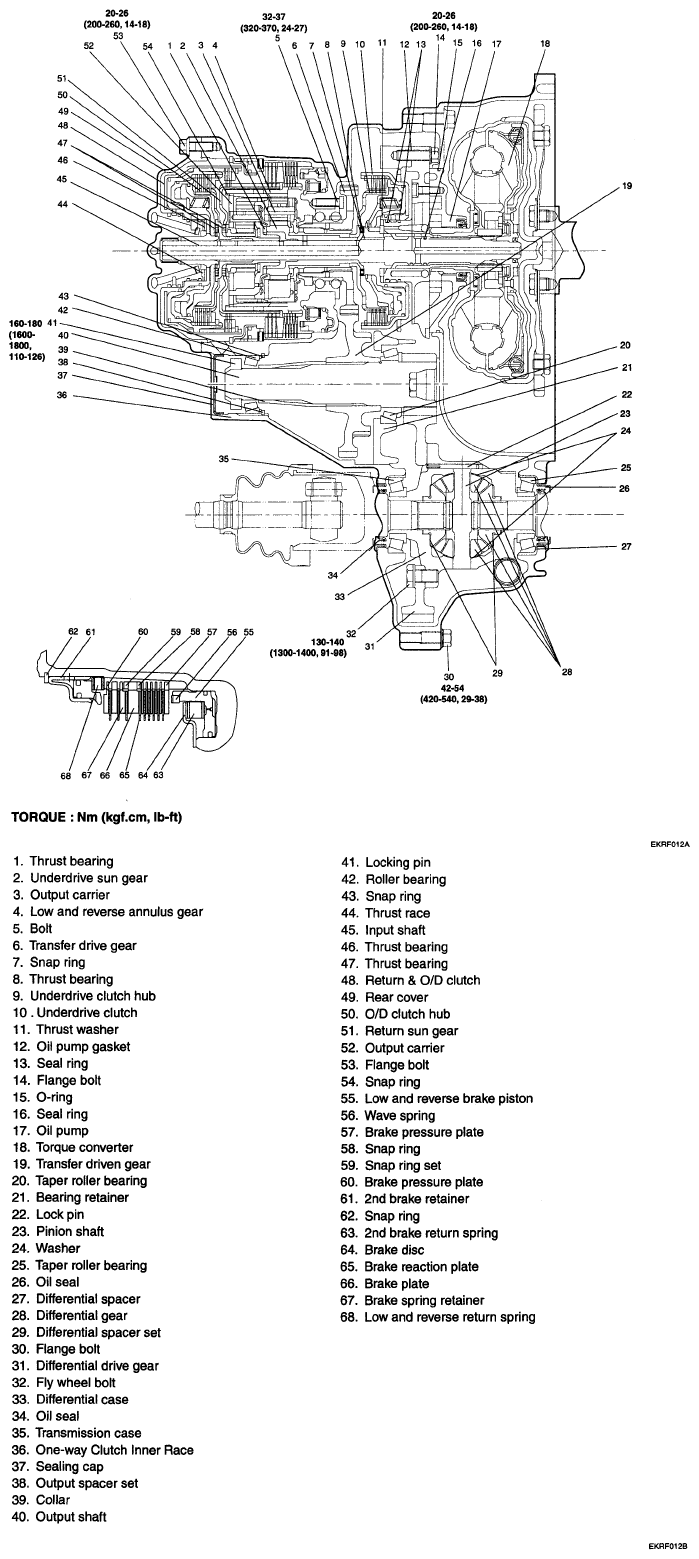

Fig 1: Identifying Automatic Transaxle Components (1 Of 4)

G05348496

Courtesy of HYUNDAI MOTOR CO.
