Automatic Transaxle System Components Location

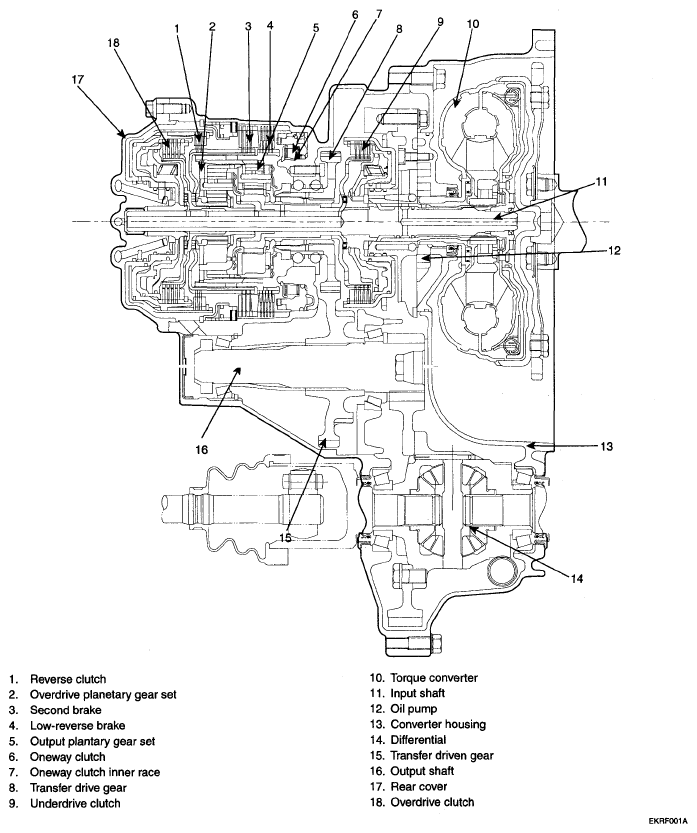

Fig 1: Identifying Automatic Transaxle System Components Location

G05348356

Courtesy of HYUNDAI MOTOR CO.
