Transaxle Oil Temperature Sensor: Replacement

  1. Remove the automatic transaxle assembly.
  2. Remove the valve body cover (refer to the overhaul manual).
  3. Disconnect the oil temperature sensor connector.
  4. Remove the oil temperature sensor (B), loosening the mounting bolt (A).

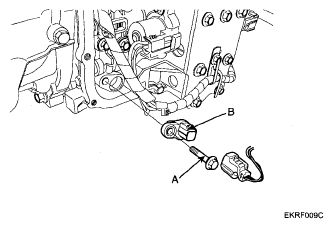

    Fig 1: Identifying Oil Temperature Sensor Mounting Bolt
    G04891879Courtesy of HYUNDAI MOTOR CO.
  5. Replace the sensor with the new one and reassemble the rest of the parts.
