Transaxle Oil Temperature Sensor: Inspection

  1. Remove the oil temperature sensor (A).
    Fig 1: Identifying Oil Temperature Sensor
    G05348567Courtesy of HYUNDAI MOTOR CO.
  2. Measure the resistance between the terminal 1 and 2 of the sensor connector.
    RESISTANCE SPECIFICATION CHART

    Temp.[°C (°F)] Resistance (Ω)
    0 (32) 100 (212) 18.6 0.63

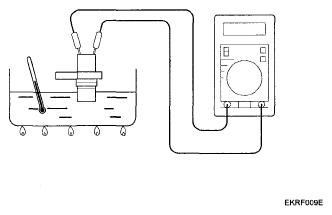

    Fig 2: Measuring Resistance Between Terminal 1 And 2 Of Sensor Connector
    G04891881Courtesy of HYUNDAI MOTOR CO.
  3. If the value is out of the specfication, replace the oil temperature sensor.
