Components (1)

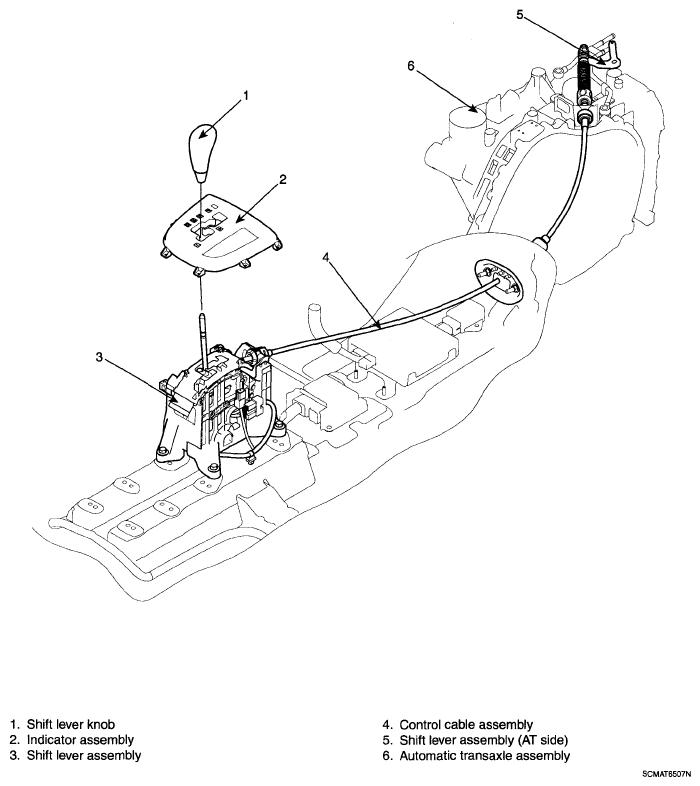

Fig 1: Identifying Shift Lever Components (1 Of 2)

G05348578

Courtesy of HYUNDAI MOTOR CO.

COMPONENTS (2)

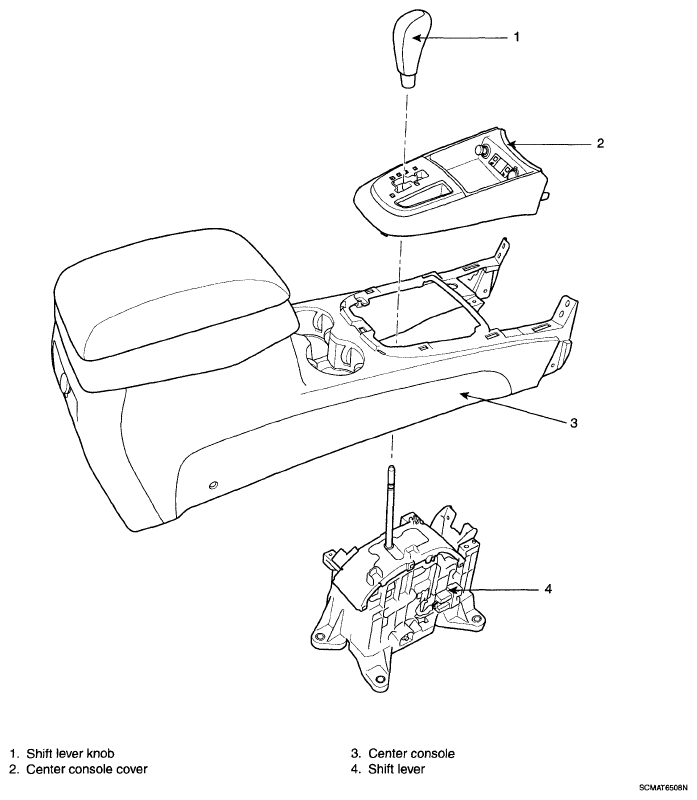

Fig 2: Identifying Shift Lever Components (2 Of 2)

G05348579

Courtesy of HYUNDAI MOTOR CO.
