Output Shaft Speed Sensor

• Type: Hall sensor
• Current consumption: 22mA (MAX.)
• Sensor body and sensor connector have been unified as one.
  Fig 1: Identifying Input Shaft Speed Sensor And Output Shaft Speed Sensor

  Courtesy of HYUNDAI MOTOR CO.

HALL TYPE SENSOR: SPECIFICATION

WAVE FORM WITH HIGH-SCAN

Fig 2: Wave Form Graph

Courtesy of HYUNDAI MOTOR CO.

HALL TYPE SENSOR: STRUCTURE & INTERFACE

Fig 3: Identifying Hall Type Sensor Components

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Input Shaft And Output Shaft Speed Sensor Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

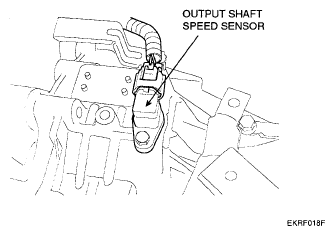

Fig 5: Identifying Output Shaft Speed Sensor

Courtesy of HYUNDAI MOTOR CO.
