Wiring Precautions

SRS wiring can be identified by special yellow outer covering (except the SRS circuits under the front seats and the SRS circuits in the FEM of engine room).

Observe the instructions described in this section.

• Never attempt to modify, splice, or repair SRS wiring.

  If there is an open or damage in SRS wiring, replace the harness.

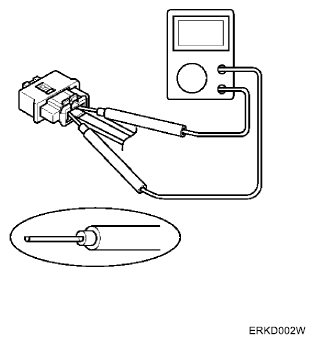

  Fig 1: Repairing SRS Wiring

  Courtesy of HYUNDAI MOTOR CO.
• Be sure to install the harness wires so that they are not pinched, or interfere with other parts.

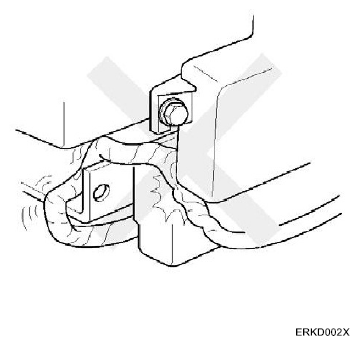

  Fig 2: Precautions - Harness Wires Not Pinched

  Courtesy of HYUNDAI MOTOR CO.
• Make sure all SRS ground locations are clean, and grounds are securely fastened for optimum metal-to-metal contact. Poor grounding can cause intermittent problems that are difficult to diagnose.
