Airbag Connector(II): Disconnecting

To release the lock, pull the spring-loaded sleeve (A) and the slider (B), while holding the opposite half of the connector. Pull the connector halves apart. Be sure to pull on the sleeve and not on the connector half.

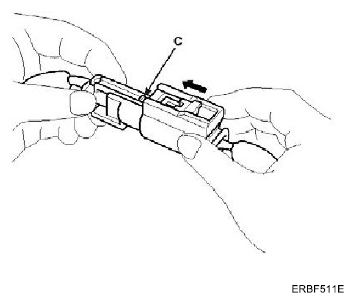

Fig 1: Pulling Spring-Loaded Sleeve
G06217502Courtesy of HYUNDAI MOTOR CO.
