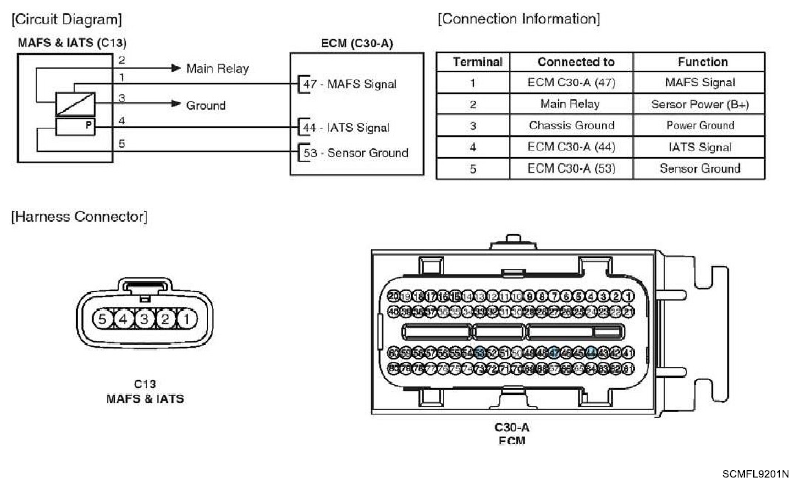

Home >> Hyundai >> 2009 >> Santa Fe GLS, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (2.7)) >> Mass Air Flow Sensor (MAFS) >> Circuit Diagram
