Rear Curtain Unit: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the right trunk trim. (Refer to TRUNK LID )
  3. Remove the rear curtain unit (A) after removing nuts (2EA) and connector.

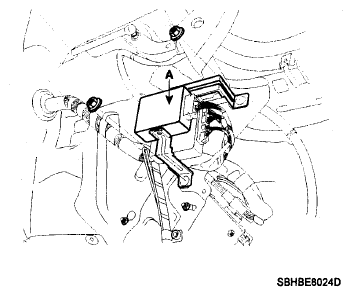

    Fig 1: Identifying Rear Curtain Unit
    G06104008Courtesy of HYUNDAI MOTOR CO.
