Rear Curtain Switch: Inspection

  1. Check for continuity between the terminals. If the continuity is not as specified, replace the rear curtain switch.

    [IMS]

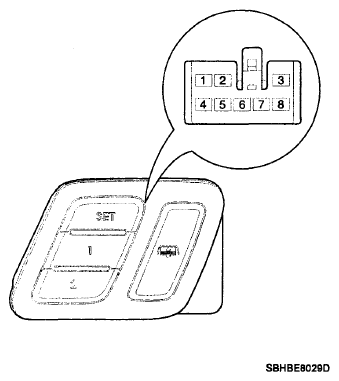

    Fig 1: Identifying Rear Curtain Switch Connector Terminals - IMS
    G06104013Courtesy of HYUNDAI MOTOR CO.

    [NON-IMS]

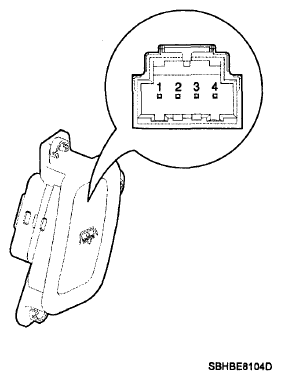

    Fig 2: Identifying Rear Curtain Switch Connector Terminals - NON-IMS
    G06104014Courtesy of HYUNDAI MOTOR CO.

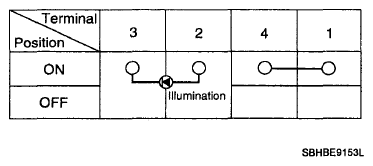

    Fig 3: Rear Curtain Switch Connector Terminals Continuity Chart
    G06104015Courtesy of HYUNDAI MOTOR CO.
