Steering Wheel Remote Control

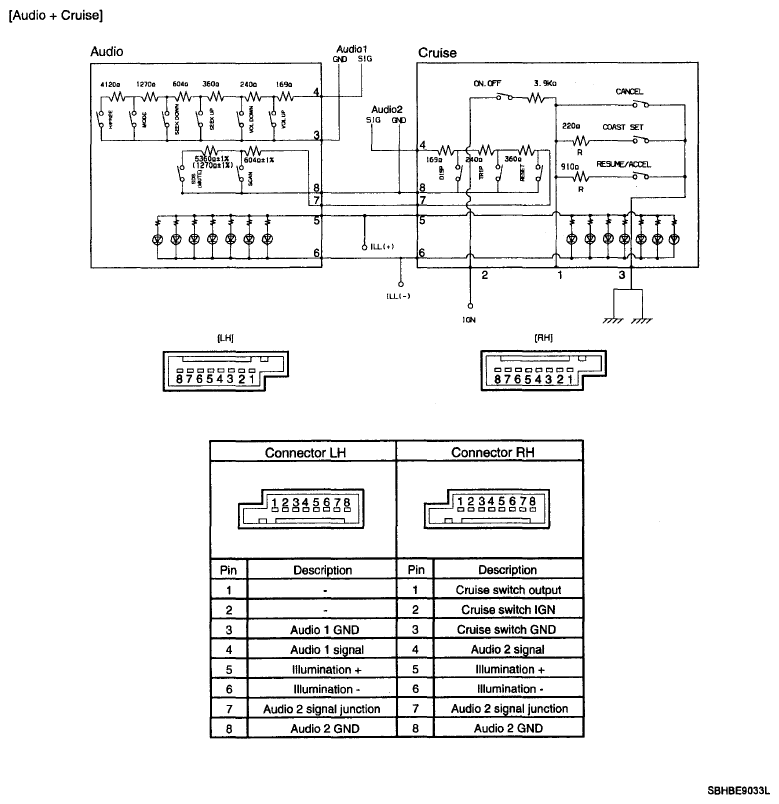

Fig 1: Steering Wheel Remote Control - Circuit Diagram (1 Of 2)
G06103571Courtesy of HYUNDAI MOTOR CO.

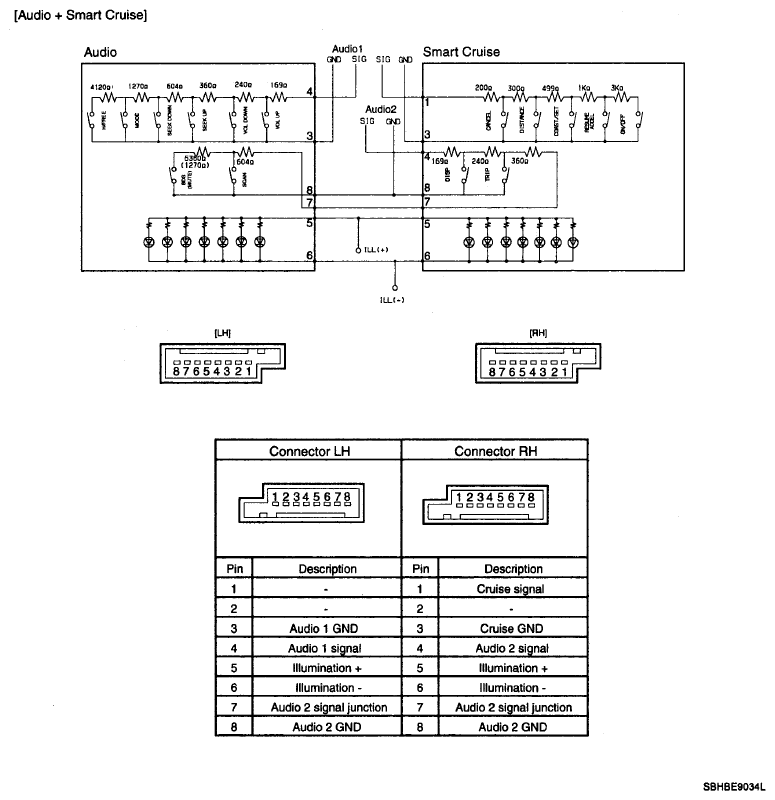

Fig 2: Steering Wheel Remote Control - Circuit Diagram (2 Of 2)
G06103572Courtesy of HYUNDAI MOTOR CO.
