Driver Door Module (DDM): Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim panel (Refer to FRONT DOOR )
  3. Remove the door module (DDM) (A) from the front door trim panel after disconnecting module connector.

    Be careful not to damage the door module removing the clip.

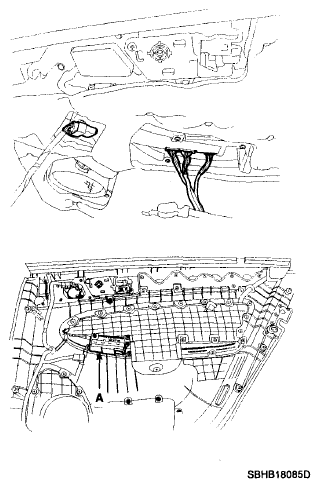

    Fig 1: Identifying Door Module (DDM)
    G06102012Courtesy of HYUNDAI MOTOR CO.
  4. Remove the door module (A) from the front door trim panel.

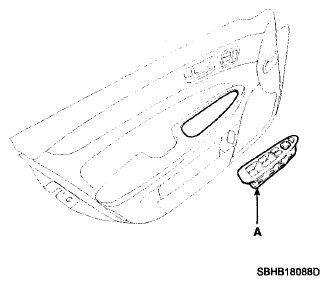

    Fig 2: Identifying Front Door Trim Panel Door Module
    G06102013Courtesy of HYUNDAI MOTOR CO.
