Front Area Module (FAM): Components

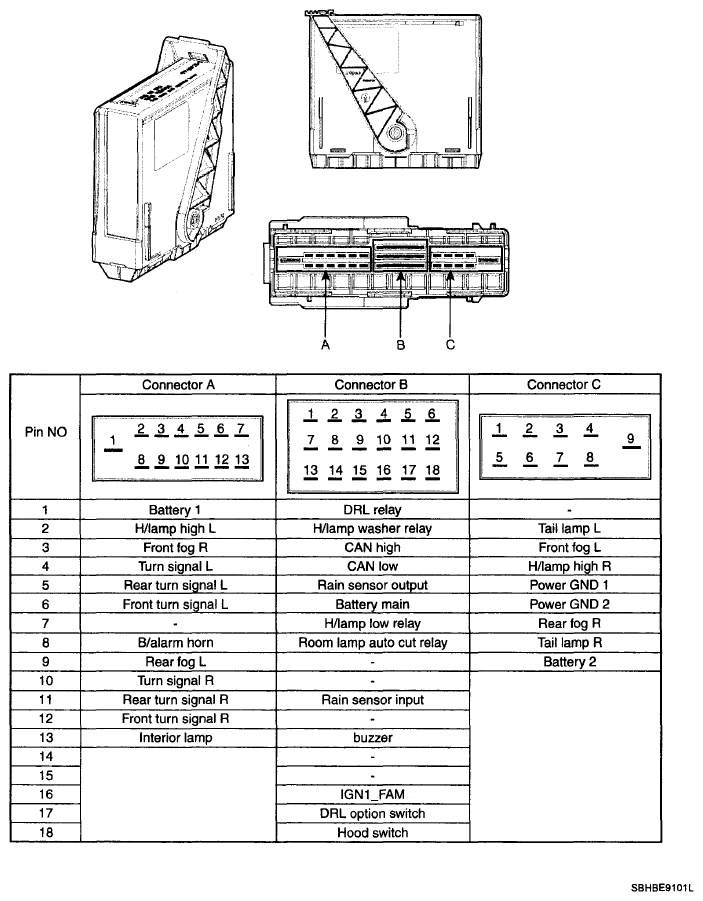

Fig 1: Identifying Front Area Module (FAM) Components

G06102057

Courtesy of HYUNDAI MOTOR CO.
