Monitor Scantool Data

1. Connect scan tool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "SCSV "C" (S3)" parameter on the scan tool
4. Shift gear at each position.

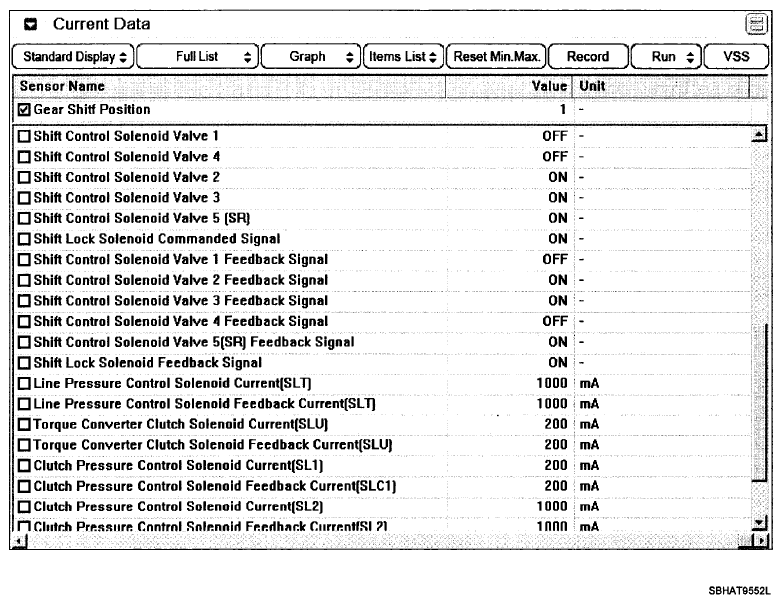

   Fig 1: D Range - 1st Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

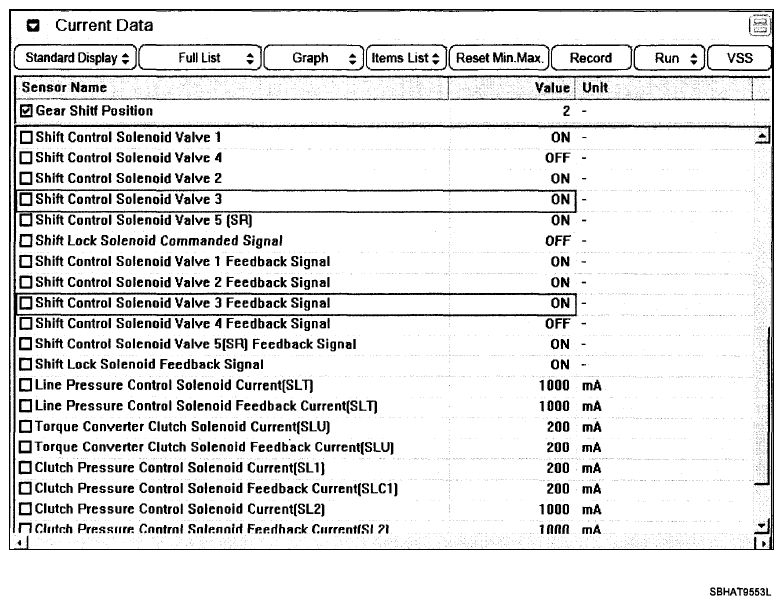

   Fig 2: D Range - 2nd Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

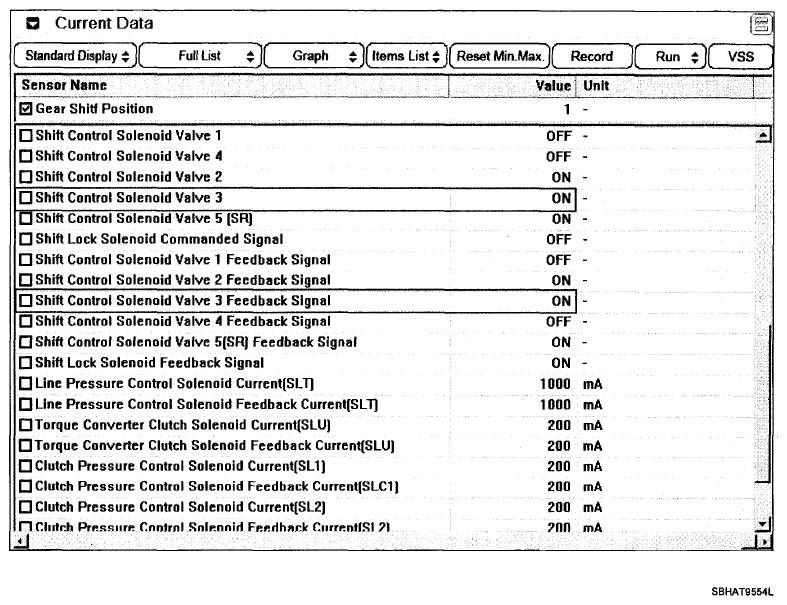

   Fig 3: Sports Mode - 1st Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

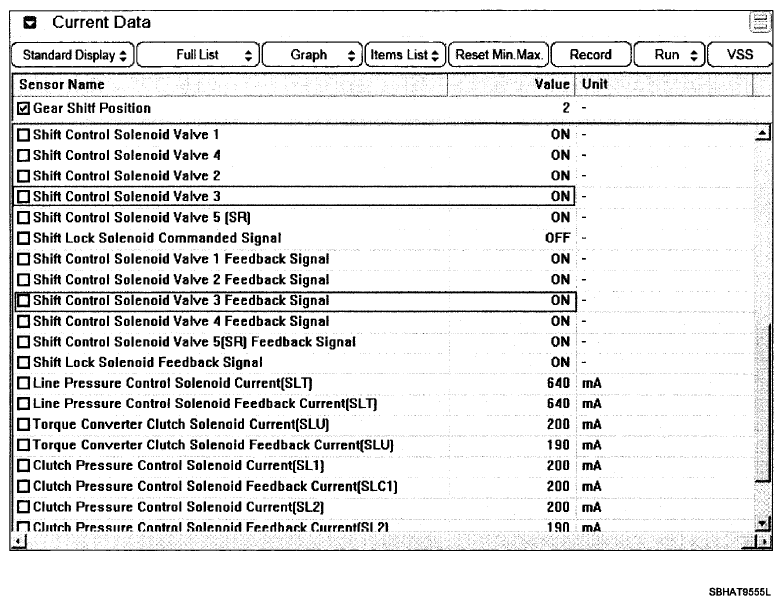

   Fig 4: Sports Mode - 2nd Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

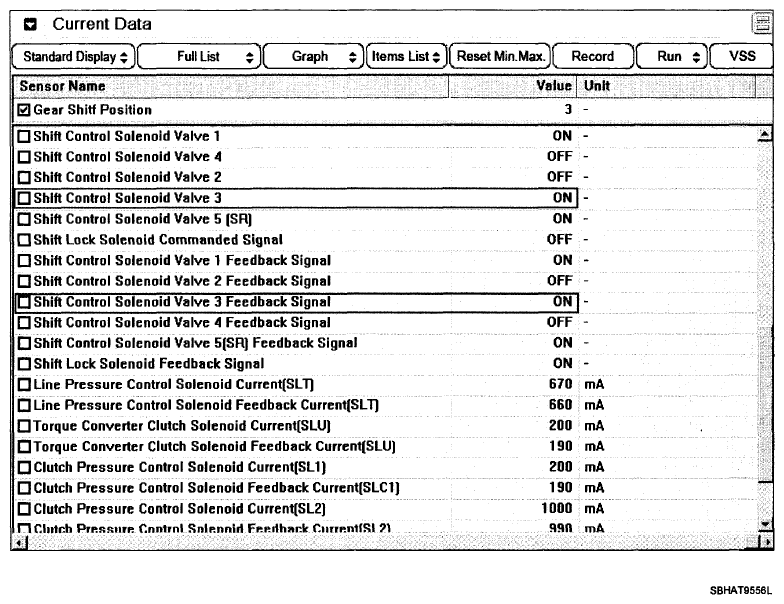

   Fig 5: Sports Mode - 3rd Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

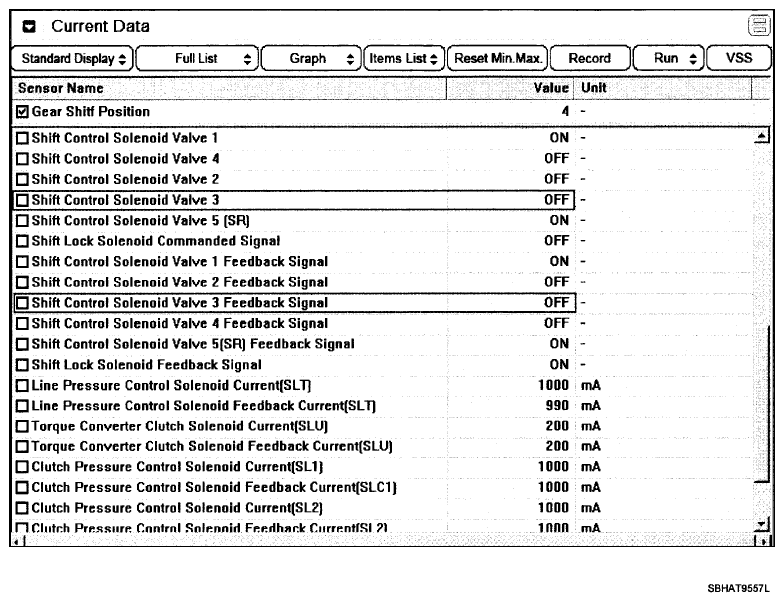

   Fig 6: Sports Mode - 4th Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.
   Fig 7: Sports Mode - 5th Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

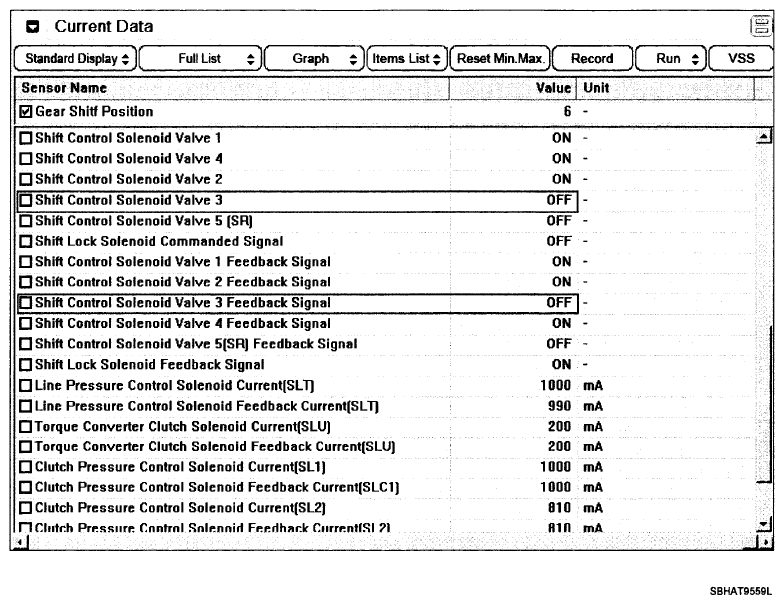

   Fig 8: Sports Mode - 6th Gear - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.

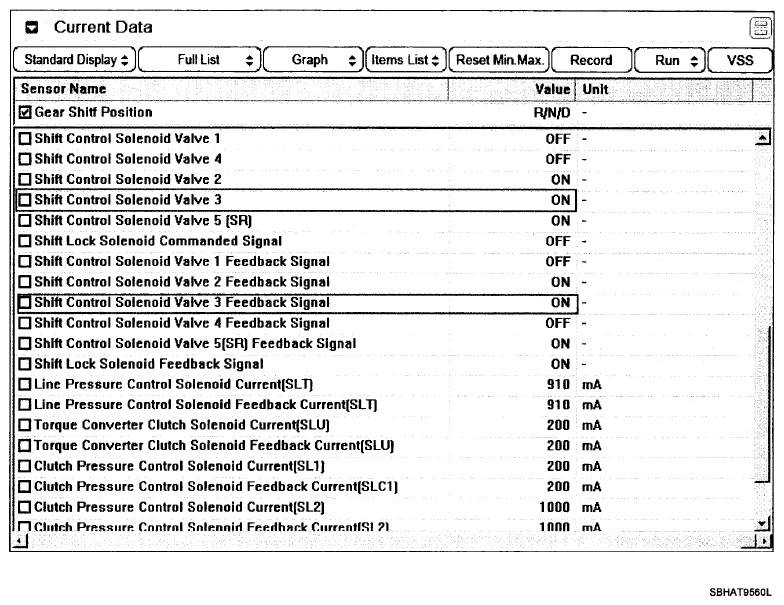

   Fig 9: Reverse - Signal Waveform & Data

   Courtesy of HYUNDAI MOTOR CO.
5. Is the same error pattern with "1-2 shift valve"?

   YES

   • Replace AUTO TRANSAXLE (BODY CONTROL VALVE faulty) as necessary and Go to "VERIFICATION VEHICLE REPAIR " procedure.

   NO

   • If the P0762 output and confirmed the S3 ON error, then repair as necessary and Go to "VERIFICATION VEHICLE REPAIR " procedure.

How to perform Initial Learning

If you replace the automatic transmission or TCU, or if you overwrite the TCU software, be sure to initialize the learned values and perform initial learning.

1. Step 1) Warm-up

   Raise the ATF temperature by leaving the vehicle idling or performing city drive. Check the ATF temperature using the Scan-tool and make sure it is between 50°C (122°F) and 120°C (248°F). If the ATF temperature is outside this range, work to bring the range.

   CAUTION: Don't raise the oil temperature by stalling the engine.

   (Reference)

   If the oil temperature is not between 50°C (122°F) and 120°C (248°F), initial learning can not be performed. Before learning, check for variable speed shock or shift shock.

2. STEP 2) Garage shift learning ("N→R", "N→D")

   With the vehicle standing still, depress the brake and keep the shift lever in "N" for 3seconds. Then, shift from "N" into "D", and maintain this condition for 3seconds.

   Repeat this procedure 5 times. Then repeat it 5 times in the same way for "R".

3. STEP 3) Garage shift control learning

   In "D", with the throttle opening between 25 and 35%, drive until you reach 6th gear and a vehicle speed at 80Km/h or higher. Then, release the accelerator pedal and coast, and bring the vehicle to a stop in 60 seconds minimum. Repeat this procedure 10 times.

4. STEP 4) Check learning results

Check that variable speed shock and shift shock have decreased compared to conditions before learning.

How to perform "N" position learning

If you replace the automatic transmission or TCU, be sure to perform "N" position learning.

1. Step 1) Shift to P range so that vehicle is in standstill. Turn IG ON but Engine is OFF.
2. Step 2) After releasing shift lock, shift the shift lever to "N" position.
3. Step 3) Install the SST on the shaft of inhibitor switch, and then, assemble the SST with alining neutral line on the SST with neutral line on the inhibitor switch.
4. Step 4) Tighten the bolt after confirm the Neutral lines are aligned with.
