Replacement Of Flange York Assembly: Notes

Remove the propeller shaft assembly, (refer to PROPELLER SHAFT )
Using a hammer and chisel, loosen the staked part of the nut.

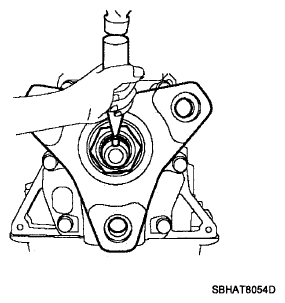

Fig 1: Loosening Staked Part Of Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the nut and flange yoke.

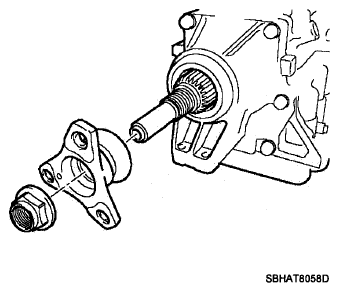

Fig 2: Identifying Flange Yoke And Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the oil seal from the flange yoke.
CAUTION: Be careful not to damage the flange yoke.

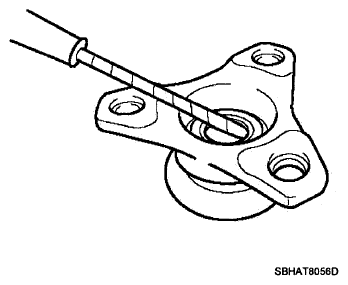

Fig 3: Removing Oil Seal From Flange Yoke
Courtesy of HYUNDAI MOTOR CO.
Using the special service tool (09452-3M200) and a hammer, install a new oil seal to the flange yoke.
Specification :

0 + 0.3mm (0.012in) (shown in the figure)
CAUTION:
- Be careful not to damage the flange yoke oil seal.
- Be careful not to damage the flange yoke.

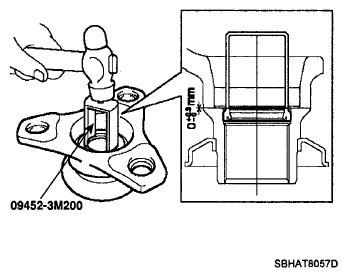

Fig 4: Installing Oil Seal To Flange Yoke
Courtesy of HYUNDAI MOTOR CO.
Install the flange yoke to the output shaft with a new nut.
Tightening torque:

11.7 ~ 14.0 Nm (1.17 ~ 1.40 kgf.m, 8.46 ~ 10.12 lb-ft)

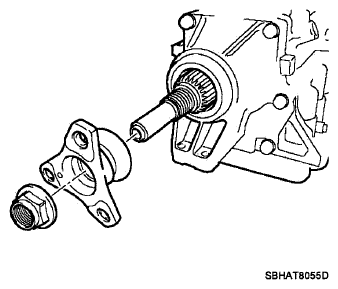

Fig 5: Identifying Flange Yoke To Output Shaft With Nut
Courtesy of HYUNDAI MOTOR CO.
Using a hammer and chisel, stake the nut.

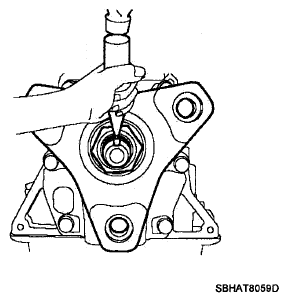

Fig 6: Staking Nut
Courtesy of HYUNDAI MOTOR CO.
Install the propeller shaft assembly, (refer to PROPELLER SHAFT )
