Components (1)

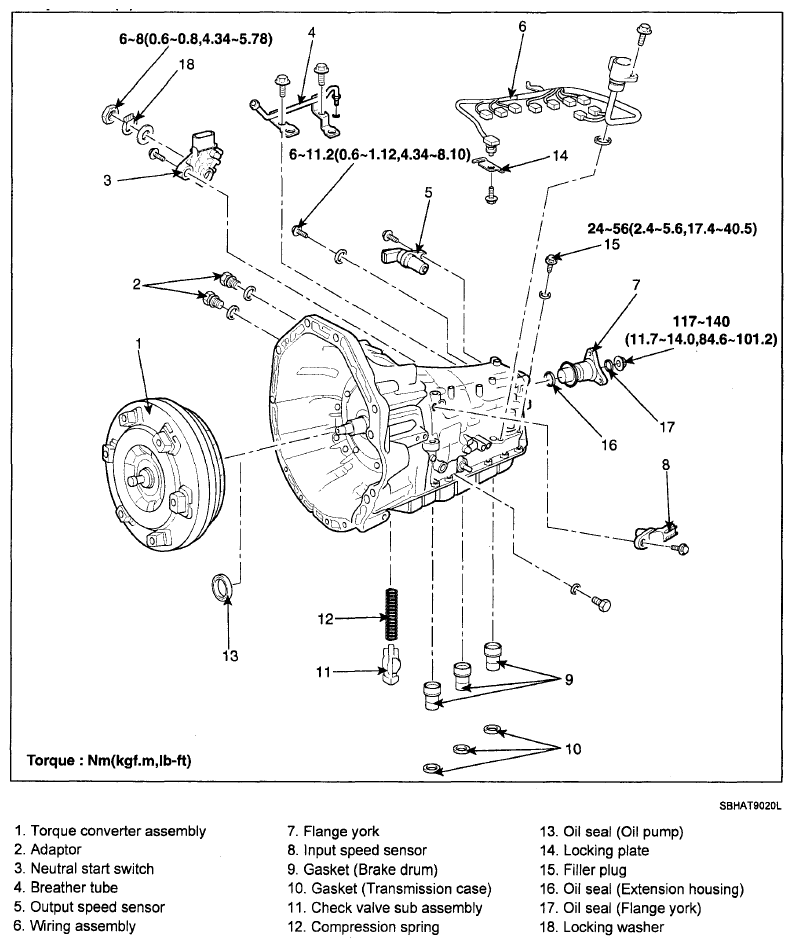

Fig 1: Exploded View Of Automatic Transmission With Torque Specification (1 Of 2)
G06106800Courtesy of HYUNDAI MOTOR CO.

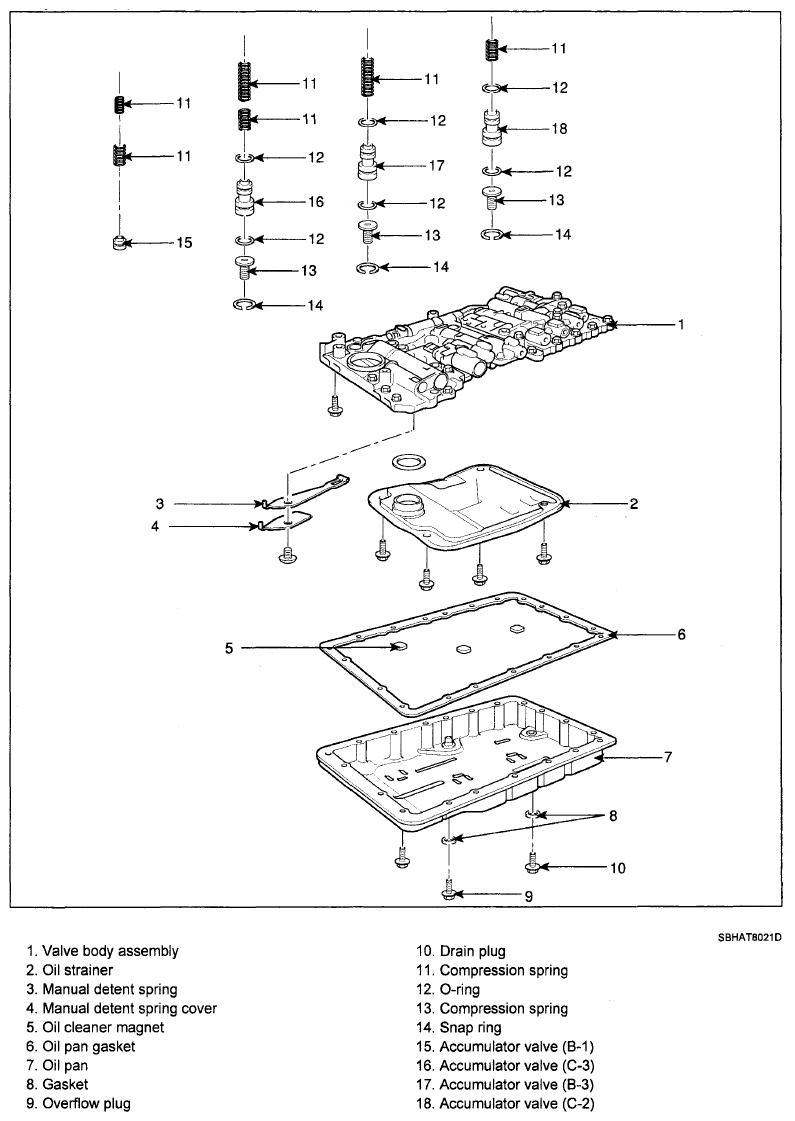

Fig 2: Exploded View Of Automatic Transmission With Torque Specification (2 Of 2)
G06106801Courtesy of HYUNDAI MOTOR CO.
