Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC) " mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.

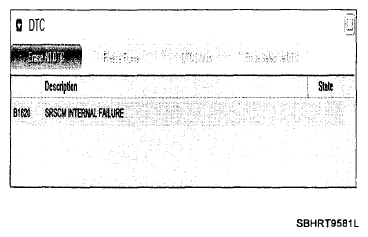

    Fig 1: Scan Tool Display - Internal Fault-Replace SRSCM
    G06101163Courtesy of HYUNDAI MOTOR CO.
    NOTE:
    • H: Historical fault
    • P: Present fault
  5. Is DTC present problem?

    YES

    • Internal fault of SRSCM. Substitute with a SRSCM and check for proper operation.

      If the problem is corrected, replace SRSCM and then Go to "VERIFICATION OF VEHICLE REPAIR " procedure
