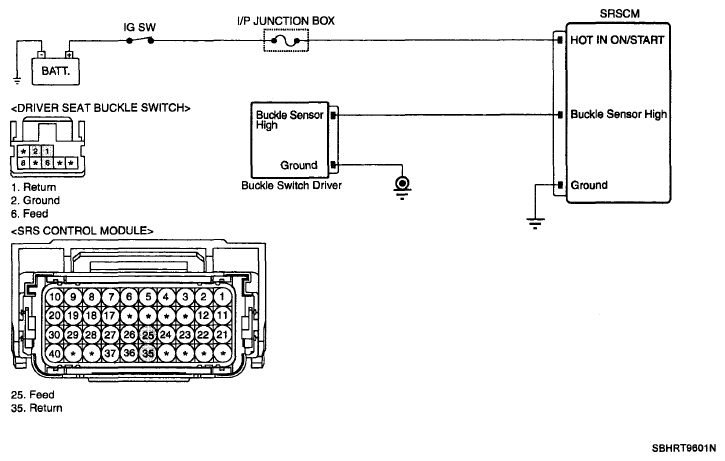

Home >> Hyundai >> 2009 >> Genesis 3.8 >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> SRS Control Module (SRSCM) >> Troubleshooting for DTC >> B1515 Buckle Switch Driver Defect >> Diagnostic Circuit Diagram
