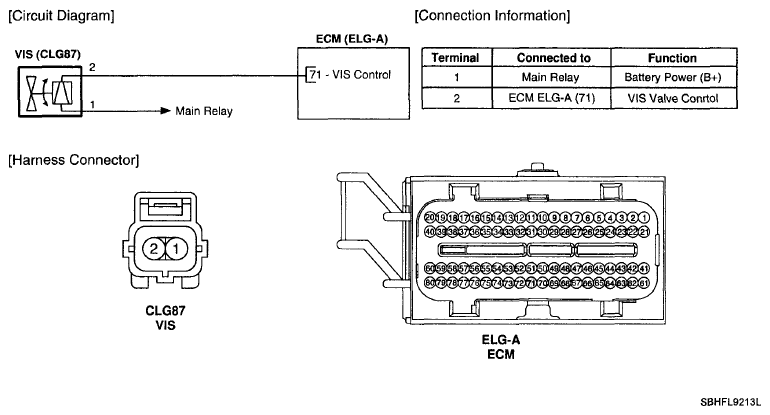

Home >> Hyundai >> 2009 >> Genesis 3.8 >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (Fuel System (G6DB/G6DA - GSL 3.3/3.8)) >> Variable Intake Solenoid (VIS) Valve >> Circuit Diagram
