Home >> Hyundai >> 2009 >> Genesis 3.8 >> Repair and Diagnosis >> Electrical >> Indicators And Gauges >> Component Location

Component Location

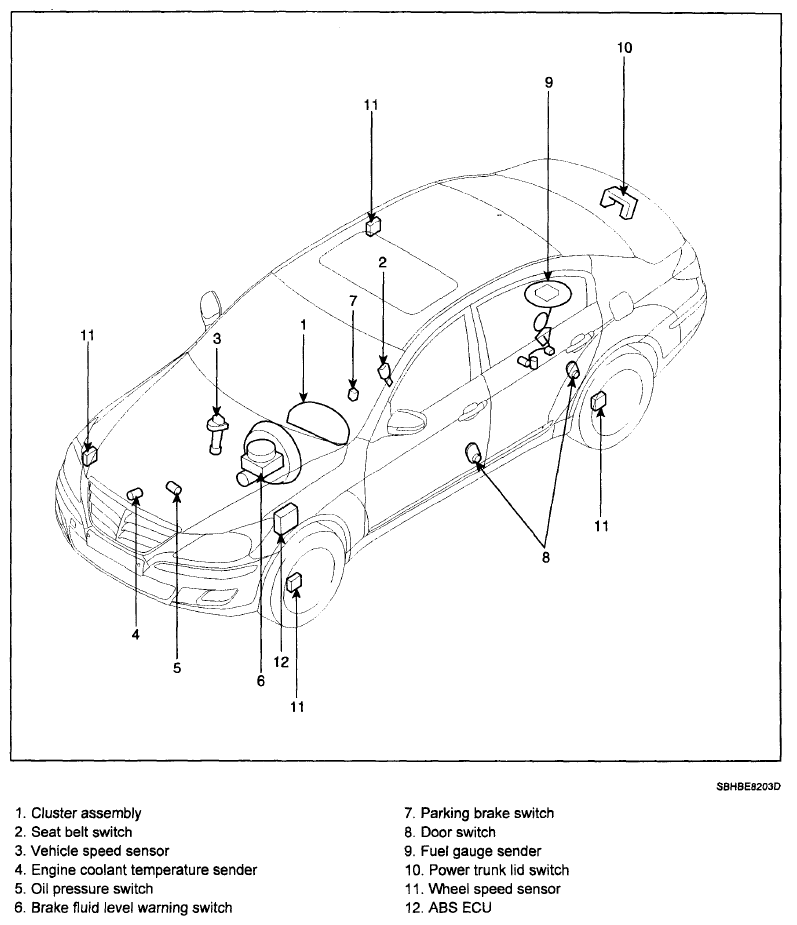

Fig 1: Identifying Indicators And Gauges Component Location

G06103856

Courtesy of HYUNDAI MOTOR CO.
