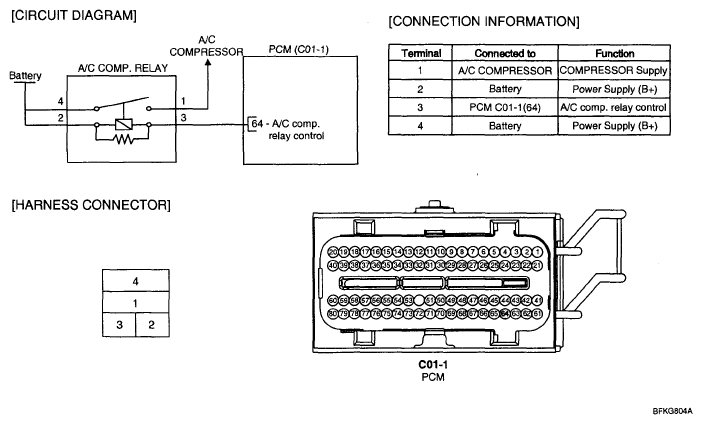

Home >> Hyundai >> 2009 >> Entourage Limited >> Repair and Diagnosis >> Engine Performance >> System >> DTC Troubleshooting Procedures (2 Of 2) >> DTC P0646 A/C Clutch Relay Control Circuit Low >> Schematic Diagram
