Front Hub / Knuckle: Components

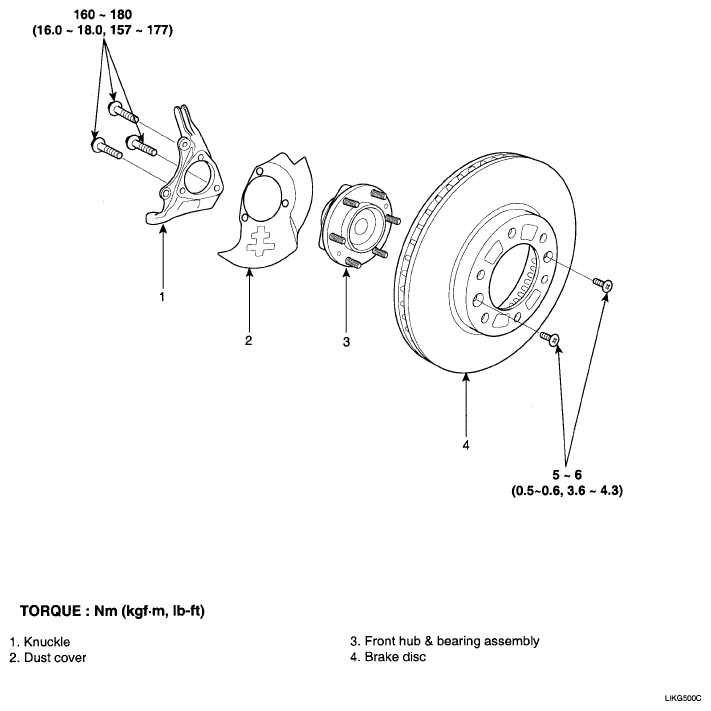

Fig 1: Front Hub / Knuckle Replacement Components With Torque Specifications

G05322505

Courtesy of HYUNDAI MOTOR CO.
